Equity Spot-Futures Arbitrage: Implied Forward Rate Computation#
This notebook demonstrates how to compute implied forward rates from equity index futures, mirroring the approach of Hazelkorn et al. (2021). Our goal is to construct:
\[
\text{ESF}_t \;=\; f_{t,\tau_1,\tau_2} \;-\; \text{OIS3M}_t
\]
where
\[
f_{t,\tau_1,\tau_2} \;=\; \frac{F_{t,\tau_2} + \mathbb{E}_t^Q[D_{t,\tau_2}]}{F_{t,\tau_1} + \mathbb{E}_t^Q[D_{t,\tau_1}]} - 1,
\]
and
\[
F_{t,\tau} \;=\; S_t\bigl(1 + r_{t,\tau}^f\bigr) \;-\; \mathbb{E}_t^Q[D_{t,\tau}].
\]
The difference between the futures-implied forward rate and the 3-month OIS rate can reveal potential funding frictions or other market constraints that prevent perfect spot-futures arbitrage in equity markets.
import pandas as pd
import numpy as np
from datetime import datetime, timedelta
import calendar
import logging
import sys
import os
import matplotlib.pyplot as plt
import seaborn as sns
from pathlib import Path
%matplotlib inline
sns.set_style('whitegrid')
# Add the src directory to the path to import our settings
sys.path.insert(1, "./src")
try:
from settings import config
print("Successfully imported config from settings module")
except ImportError:
print("Failed to import config. Using local fallback.")
def config(key):
config_dict = {
"DATA_DIR": Path("./_data"),
"TEMP_DIR": Path("./_data/temp"),
"INPUT_DIR": Path("./_data/input"),
"PROCESSED_DIR": Path("./_data/processed"),
"MANUAL_DATA_DIR": Path("./data_manual"),
"OUTPUT_DIR": Path("./_output"),
"START_DATE": "2010-01-01",
"END_DATE": "2025-01-01"
}
return config_dict.get(key, Path("./data"))
# Basic paths
DATA_DIR = config("DATA_DIR")
TEMP_DIR = config("TEMP_DIR")
INPUT_DIR = config("INPUT_DIR")
PROCESSED_DIR = config("PROCESSED_DIR")
DATA_MANUAL = config("MANUAL_DATA_DIR")
OUTPUT_DIR = config("OUTPUT_DIR")
START_DATE = pd.to_datetime(config("START_DATE"))
END_DATE = pd.to_datetime(config("END_DATE"))
print(f"DATA_DIR = {DATA_DIR}")
print(f"PROCESSED_DIR = {PROCESSED_DIR}")
print(f"START_DATE = {START_DATE.date()}, END_DATE = {END_DATE.date()}")
INDEX_CODES = ["SPX", "NDX", "INDU"]
Successfully imported config from settings module
DATA_DIR = C:\Users\Andik\OneDrive\Desktop\Chicago\Full_stack_QF\Equity_Spot_futures_arb\_data
PROCESSED_DIR = C:\Users\Andik\OneDrive\Desktop\Chicago\Full_stack_QF\Equity_Spot_futures_arb\_data\processed
START_DATE = 2010-01-01, END_DATE = 2024-12-31
Theoretical Background#
In classical spot-futures parity for an equity index (S_t) that pays dividends from (t) to (t + \tau), the no-arbitrage futures price is:
\[
F_{t,\tau} \;=\; S_t\,(1 + r_{t,\tau}^f) \;-\; \mathbb{E}_t^Q[D_{t,\tau}].
\]
However, a direct spot vs. futures comparison can be noisy if they close at different times (e.g., 4:00 pm vs. 4:15 pm). Instead, we look at two futures contracts (maturing at (\tau_1) and (\tau_2)):
\[
1 + f_{t,\tau_1,\tau_2}
\;=\;
\frac{F_{t,\tau_2} + \mathbb{E}_t^Q[D_{t,\tau_2}]}{F_{t,\tau_1} + \mathbb{E}_t^Q[D_{t,\tau_1}]},
\]
to isolate the implied forward rate (f_{t,\tau_1,\tau_2}). We then define the Equity Spot-Futures Arbitrage Spread as:
\[
\text{ESF}_t \;=\; f_{t,\tau_1,\tau_2} \;-\; \text{OIS3M}_t.
\]
A positive (\text{ESF}_t) indicates the implied equity forward rate is higher than the OIS benchmark, potentially signaling a funding-cost wedge or other limits to arbitrage.
def build_daily_dividends(index_code: str) -> pd.DataFrame:
"""
Load daily dividends for the given index code from bloomberg_historical_data.parquet.
Return columns: [Date, Daily_Div].
"""
print(f"[{index_code}] Building daily dividend table")
input_file = Path(INPUT_DIR) / "bloomberg_historical_data.parquet"
if not os.path.exists(input_file):
print("Primary input file not found, switching to cached data")
input_file = Path(DATA_MANUAL) / "bloomberg_historical_data.parquet"
raw_df = pd.read_parquet(input_file)
div_col = (f"{index_code} Index", "INDX_GROSS_DAILY_DIV")
if div_col not in raw_df.columns:
raise ValueError(f"Missing daily dividend column {div_col} for index={index_code}")
div_df = raw_df.loc[:, div_col].to_frame("Daily_Div").reset_index()
div_df.rename(columns={"index": "Date"}, inplace=True)
div_df["Date"] = pd.to_datetime(div_df["Date"], errors="coerce")
div_df["Daily_Div"] = div_df["Daily_Div"].fillna(0)
# Optionally drop any row that has no valid date
before_drop = len(div_df)
div_df.dropna(subset=["Date"], inplace=True)
after_drop = len(div_df)
if after_drop < before_drop:
print(f"[{index_code}] Dropped {before_drop - after_drop} rows with invalid or missing date in daily_div.")
div_df.sort_values("Date", inplace=True)
div_df.reset_index(drop=True, inplace=True)
print(f"[{index_code}] daily dividends final shape: {div_df.shape}")
print(f"[{index_code}] Sample daily dividends:\n{div_df.head(10)}")
return div_df
def barndorff_nielsen_filter(df: pd.DataFrame,
colname: str,
date_col: str = "Date",
window: int = 45,
threshold: float = 10.0) -> pd.DataFrame:
"""
Barndorff-Nielsen outlier filter on 'colname' over ±window days.
1) rolling median => ...
2) abs_dev from that median
3) rolling mean(abs_dev) => mad
4) outlier if abs_dev/mad >= threshold => set colname_filtered=NaN
"""
df = df.sort_values(date_col).copy()
rolling_median = df[colname].rolling(window=window*2+1, center=True, min_periods=1).median()
rolling_median_shifted = rolling_median.shift(1)
df["abs_dev"] = (df[colname] - rolling_median_shifted).abs()
rolling_mad = df["abs_dev"].rolling(window=window*2+1, center=True, min_periods=1).mean()
rolling_mad_shifted = rolling_mad.shift(1)
df["bad_price"] = (df["abs_dev"] / rolling_mad_shifted) >= threshold
df.loc[df[colname].isna(), "bad_price"] = False
# Count how many outliers
outlier_count = df["bad_price"].sum()
if outlier_count > 0:
print(f"Barndorff-Nielsen filter: flagged {int(outlier_count)} outliers in {colname}")
df[f"{colname}_filtered"] = df[colname].where(~df["bad_price"], np.nan)
df.drop(["abs_dev", "bad_price"], axis=1, inplace=True, errors="ignore")
return df
def process_index_forward_rates(index_code: str) -> pd.DataFrame:
"""
1) Load near/next futures for index_code from _Calendar_spread.csv
2) Merge with single OIS_3M (as-of)
3) Merge daily dividends, compute Div_Sum1_Comp & Div_Sum2_Comp
4) Implied forward => cal_{index_code}_rf, OIS forward => ois_fwd_{index_code}, spread
5) Barndorff outlier filter, then multiply spread by 100 => bps
6) Return the DataFrame
"""
print(f"[{index_code}] Starting forward rate computation")
fut_file = Path(PROCESSED_DIR) / f"{index_code}_Calendar_spread.csv"
if not fut_file.exists():
print(f"[{index_code}] Missing futures file: {fut_file}")
return pd.DataFrame()
fut_df = pd.read_csv(fut_file)
print(f"[{index_code}] Loaded futures shape: {fut_df.shape}")
if "Date" not in fut_df.columns:
print(f"[{index_code}] No 'Date' column in {fut_file}, aborting.")
return pd.DataFrame()
fut_df["Date"] = pd.to_datetime(fut_df["Date"], errors="coerce")
before_drop = len(fut_df)
fut_df.dropna(subset=["Date"], inplace=True)
print(f"[{index_code}] Dropped {before_drop - len(fut_df)} rows lacking a valid Date in futures.")
fut_df["Term1_SettlementDate"] = pd.to_datetime(fut_df["Term1_SettlementDate"], errors="coerce")
fut_df["Term2_SettlementDate"] = pd.to_datetime(fut_df["Term2_SettlementDate"], errors="coerce")
fut_df.sort_values("Date", inplace=True)
fut_df.reset_index(drop=True, inplace=True)
# === Merge single OIS_3M
ois_file = Path(PROCESSED_DIR) / "cleaned_ois_rates.csv"
if not ois_file.exists():
print(f"[{index_code}] Missing OIS file: {ois_file}")
return pd.DataFrame()
ois_df = pd.read_csv(ois_file)
if "Date" not in ois_df.columns:
ois_df.rename(columns={"Unnamed: 0": "Date"}, inplace=True)
ois_df["Date"] = pd.to_datetime(ois_df["Date"], errors="coerce")
ois_df.sort_values("Date", inplace=True)
# as-of merge
prev_len = len(fut_df)
merged_df = pd.merge_asof(
fut_df, ois_df, on="Date", direction="backward"
)
after_len = len(merged_df)
print(f"[{index_code}] as-of merged OIS: from {prev_len} -> {after_len} rows (should be same).")
# rename OIS_3M => 'OIS'
if "OIS_3M" in merged_df.columns:
merged_df.rename(columns={"OIS_3M": "OIS"}, inplace=True)
else:
print(f"[{index_code}] 'OIS_3M' column not found in OIS data, using default 'OIS_3M'?")
# === Load daily dividends
div_df = build_daily_dividends(index_code)
# add cumsum in div_df
div_df["CumDiv"] = div_df["Daily_Div"].cumsum()
# merge cumsum at current date
prev_len = len(merged_df)
merged_df = pd.merge_asof(
merged_df.sort_values("Date"),
div_df[["Date", "CumDiv"]].sort_values("Date"),
on="Date",
direction="backward"
)
after_len = len(merged_df)
print(
f"[{index_code}] as-of merged CumDiv at current date: from {prev_len} -> {after_len} rows."
)
merged_df.rename(columns={"CumDiv": "CumDiv_current"}, inplace=True)
print(f"[{index_code}] Sample merged rows with cumulative div:\n{merged_df.head(10)}")
# same approach for Term1 & Term2
t1_df = div_df.rename(columns={"Date": "Term1_SettlementDate", "CumDiv": "CumDiv_Term1"})
prev_len = len(merged_df)
merged_df = pd.merge_asof(
merged_df.sort_values("Term1_SettlementDate"),
t1_df.sort_values("Term1_SettlementDate"),
on="Term1_SettlementDate",
direction="backward"
)
after_len = len(merged_df)
print(
f"[{index_code}] as-of merged CumDiv for Term1: from {prev_len} -> {after_len} rows."
)
t2_df = div_df.rename(columns={"Date": "Term2_SettlementDate", "CumDiv": "CumDiv_Term2"})
prev_len = len(merged_df)
merged_df = pd.merge_asof(
merged_df.sort_values("Term2_SettlementDate"),
t2_df.sort_values("Term2_SettlementDate"),
on="Term2_SettlementDate",
direction="backward"
)
after_len = len(merged_df)
print(
f"[{index_code}] as-of merged CumDiv for Term2: from {prev_len} -> {after_len} rows."
)
# compute Div_Sum1 & Div_Sum2
merged_df["Div_Sum1"] = merged_df["CumDiv_Term1"] - merged_df["CumDiv_current"]
merged_df["Div_Sum2"] = merged_df["CumDiv_Term2"] - merged_df["CumDiv_current"]
# Handle missing TTM or price
# If TTM is missing, can't compute rates => drop
before_drop = len(merged_df)
merged_df.dropna(subset=["Term1_TTM", "Term2_TTM", "Term1_Futures_Price", "Term2_Futures_Price"], inplace=True)
print(
f"[{index_code}] Dropped {before_drop - len(merged_df)} rows missing TTM or Futures_Price."
)
# 4) Compounding
ttm1 = "Term1_TTM"
ttm2 = "Term2_TTM"
merged_df["Div_Sum1_Comp"] = merged_df["Div_Sum1"] * (
((merged_df[ttm1] / 2.0) / 360.0) * merged_df["OIS"] + 1.0
)
merged_df["Div_Sum2_Comp"] = merged_df["Div_Sum2"] * (
((merged_df[ttm2] / 2.0) / 360.0) * merged_df["OIS"] + 1.0
)
# Implied Forward
fp1 = "Term1_Futures_Price"
fp2 = "Term2_Futures_Price"
merged_df["implied_forward_raw"] = (
(merged_df[fp2] + merged_df["Div_Sum2_Comp"]) /
(merged_df[fp1] + merged_df["Div_Sum1_Comp"])
- 1.0
)
dt = merged_df[ttm2] - merged_df[ttm1]
merged_df[f"cal_{index_code}_rf"] = np.where(
dt > 0,
100.0 * merged_df["implied_forward_raw"] * (360.0 / dt),
np.nan
)
# OIS-implied forward
merged_df["ois_fwd_raw"] = (
(1.0 + merged_df["OIS"] * merged_df[ttm2] / 360.0) /
(1.0 + merged_df["OIS"] * merged_df[ttm1] / 360.0)
- 1.0
)
merged_df[f"ois_fwd_{index_code}"] = np.where(
dt > 0,
merged_df["ois_fwd_raw"] * (360.0 / dt) * 100.0,
np.nan
)
# Spread
spread_col = f"spread_{index_code}"
merged_df[spread_col] = merged_df[f"cal_{index_code}_rf"] - merged_df[f"ois_fwd_{index_code}"]
# BN outlier filter
merged_df = barndorff_nielsen_filter(merged_df, spread_col, date_col="Date", window=45, threshold=10)
# If outlier => set cal_rf & spread to NaN
out_mask = merged_df[f"{spread_col}_filtered"].isna()
outliers_count = out_mask.sum()
if outliers_count > 0:
print(f"[{index_code}] Setting {outliers_count} outliers to NaN for cal_{index_code}_rf & {spread_col}")
merged_df.loc[out_mask, f"cal_{index_code}_rf"] = np.nan
merged_df.loc[out_mask, spread_col] = np.nan
# Multiply spread by 100 => bps
merged_df[spread_col] = merged_df[spread_col] * 100.0
merged_df.set_index("Date", inplace=True)
print(f"[{index_code}] Final forward rates shape: {merged_df.shape}")
print(
f"[{index_code}] Sample final rows:\n"
+ merged_df[[f"cal_{index_code}_rf", f"ois_fwd_{index_code}", spread_col]].tail(5).to_string()
)
return merged_df
def plot_all_indices(results: dict, keep_dates: bool = True):
"""
Generate two charts for each index's final spread_{idx} in basis points:
1. From START_DATE to 2020-01-01
2. From START_DATE to END_DATE (full range)
By default (keep_dates=True), we reindex to the union of all dates to keep the
X-axis from skipping days that are missing in some index.
If you want to only show existing dates in each index's data, set keep_dates=False.
"""
# Define date ranges
pre_2020_end = pd.to_datetime('2020-01-01')
# If keep_dates: find the union of all dates across all DataFrames
if keep_dates:
all_dates = set()
for idx, df in results.items():
if df is not None and not df.empty:
all_dates.update(df.index.tolist())
# Build a sorted list
date_index = pd.to_datetime(sorted(all_dates))
else:
date_index = None
colors = {"SPX": "blue", "NDX": "green", "INDU": "red"}

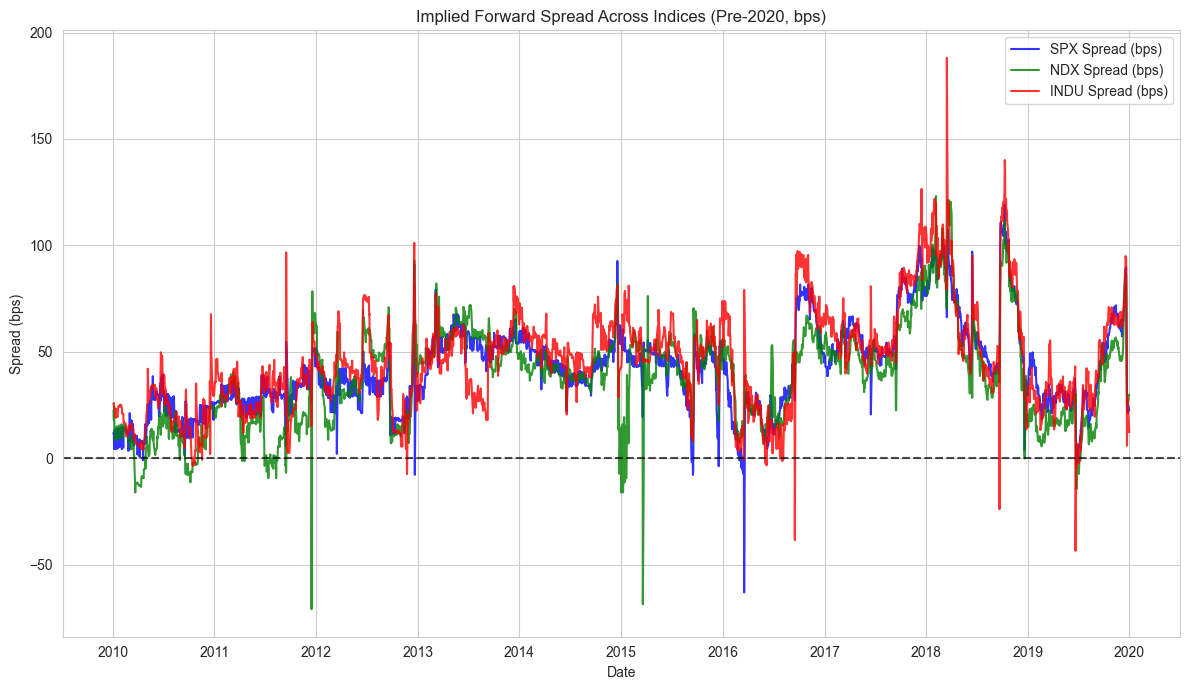

# Create Figure 1: START_DATE to 2020-01-01
plt.figure(figsize=(12, 7))
for idx, df in results.items():
if df is not None and not df.empty:
spread_col = f"spread_{idx}"
# Filter to pre-2020 data
pre_2020_df = df[df.index <= pre_2020_end]
# If empty after filtering, skip
if pre_2020_df.empty:
continue
# reindex if desired
if keep_dates and date_index is not None:
filtered_dates = date_index[date_index <= pre_2020_end]
df_plot = pre_2020_df.reindex(filtered_dates).ffill() # Forward fill missing values
else:
df_plot = pre_2020_df
plt.plot(
df_plot.index,
df_plot[spread_col],
color=colors.get(idx, "black"),
alpha=0.8,
label=f"{idx} Spread (bps)"
)
plt.axhline(0, color="k", linestyle="--", alpha=0.7)
plt.title("Implied Forward Spread Across Indices (Pre-2020, bps)")
plt.xlabel("Date")
plt.ylabel("Spread (bps)")
plt.legend()
plt.grid(True)
plt.tight_layout()
ax = plt.gca()
ax.xaxis.set_major_locator(plt.matplotlib.dates.YearLocator())
ax.xaxis.set_major_formatter(plt.matplotlib.dates.DateFormatter("%Y"))
# Display the first plot
plt.show()

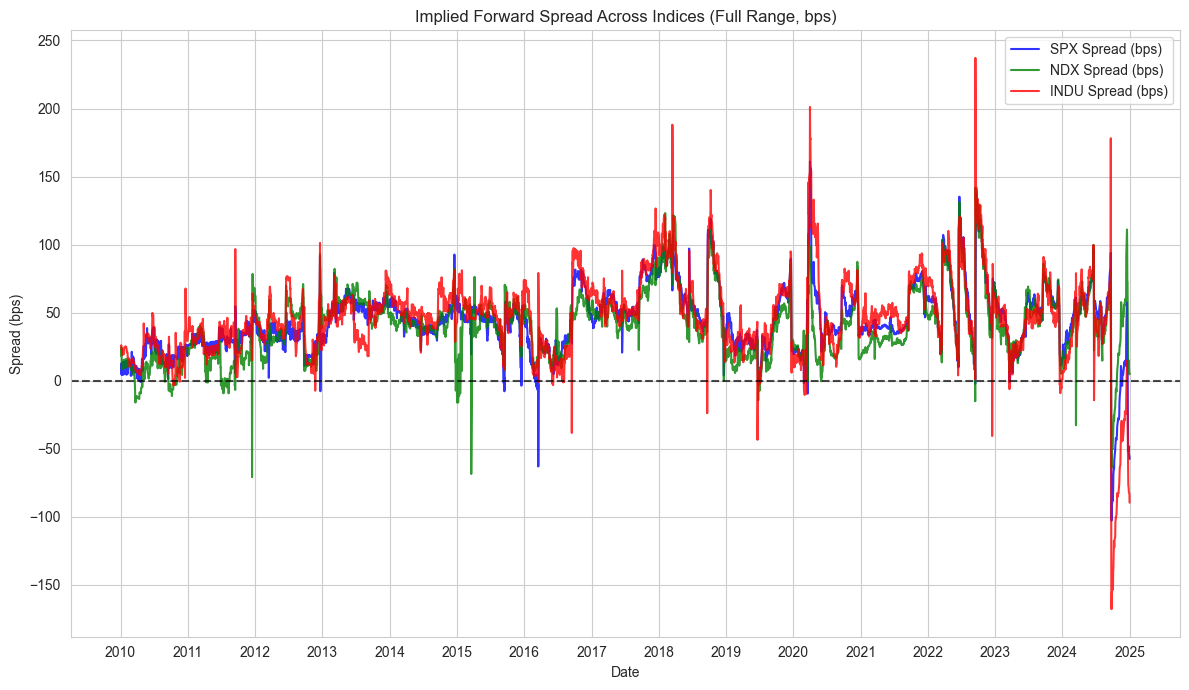

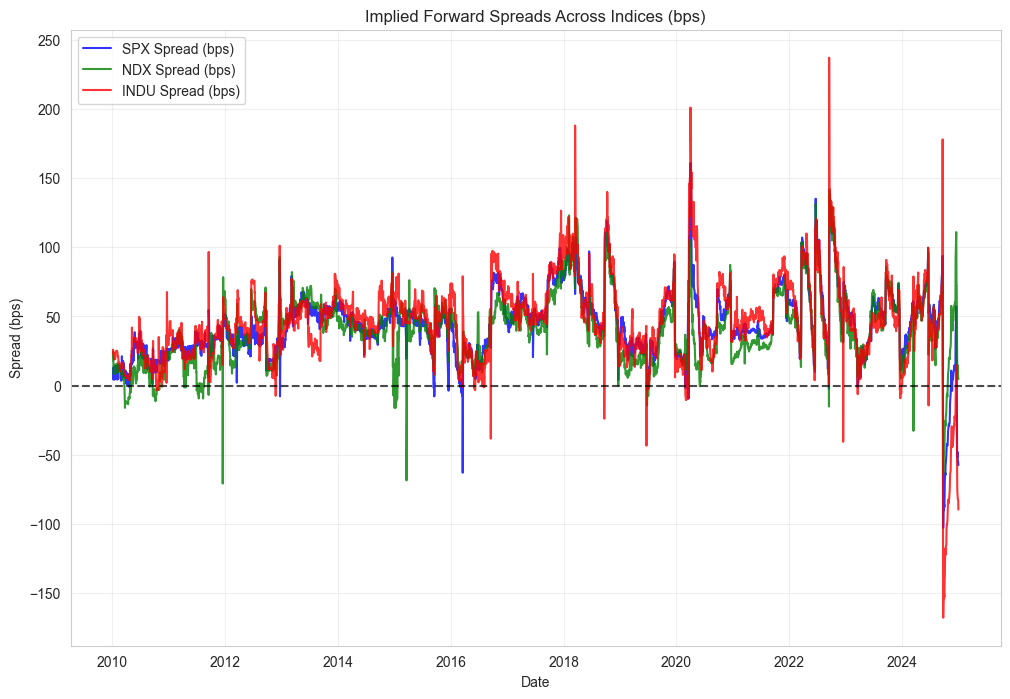

# Create Figure 2: START_DATE to END_DATE (full range)
plt.figure(figsize=(12, 7))
for idx, df in results.items():
if df is not None and not df.empty:
spread_col = f"spread_{idx}"
# reindex if desired
if keep_dates and date_index is not None:
df_plot = df.reindex(date_index).ffill() # Forward fill missing values
else:
df_plot = df
plt.plot(
df_plot.index,
df_plot[spread_col],
color=colors.get(idx, "black"),
alpha=0.8,
label=f"{idx} Spread (bps)"
)
plt.axhline(0, color="k", linestyle="--", alpha=0.7)
plt.title("Implied Forward Spread Across Indices (Full Range, bps)")
plt.xlabel("Date")
plt.ylabel("Spread (bps)")
plt.legend()
plt.grid(True)
plt.tight_layout()
ax = plt.gca()
ax.xaxis.set_major_locator(plt.matplotlib.dates.YearLocator())
ax.xaxis.set_major_formatter(plt.matplotlib.dates.DateFormatter("%Y"))
# Display the second plot
plt.show()
def main():
print("== Starting forward rate calculations with compounding dividends, single OIS, BN outlier filter ==")
results = {}
for idx in INDEX_CODES:
df_res = process_index_forward_rates(idx)
results[idx] = df_res
# Create both plots
plot_all_indices(results, keep_dates=True)
print("All computations completed successfully.")
# Execute the main function
if __name__ == "__main__":
main()
== Starting forward rate calculations with compounding dividends, single OIS, BN outlier filter ==
[SPX] Starting forward rate computation
[SPX] Loaded futures shape: (3781, 14)
[SPX] Dropped 0 rows lacking a valid Date in futures.
[SPX] as-of merged OIS: from 3781 -> 3781 rows (should be same).
[SPX] Building daily dividend table
Primary input file not found, switching to cached data
[SPX] daily dividends final shape: (3913, 2)
[SPX] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.058362
2 2010-01-05 0.001744
3 2010-01-06 0.497980
4 2010-01-07 0.061819
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.113508
9 2010-01-14 0.021957
[SPX] as-of merged CumDiv at current date: from 3781 -> 3781 rows.
[SPX] Sample merged rows with cumulative div:
Date Term1_Futures_Price Term1_Volume Term1_OpenInterest \
0 2010-01-04 1128.75 1282633.0 2440458.0
1 2010-01-05 1132.25 1368386.0 2402850.0
2 2010-01-06 1133.00 1252015.0 2396493.0
3 2010-01-07 1137.50 1553963.0 2406352.0
4 2010-01-08 1141.50 1508175.0 2758348.0
5 2010-01-11 1142.50 1444997.0 2427453.0
6 2010-01-12 1134.00 2089364.0 2439036.0
7 2010-01-13 1141.50 2110033.0 2475322.0
8 2010-01-14 1145.25 1346436.0 2473392.0
9 2010-01-15 1132.25 2031715.0 2454453.0
Term1_ContractSpec Term1_SettlementDate Term1_TTM Term2_Futures_Price \
0 MAR 10 2010-03-19 74.0 1124.00
1 MAR 10 2010-03-19 73.0 1127.50
2 MAR 10 2010-03-19 72.0 1128.00
3 MAR 10 2010-03-19 71.0 1132.50
4 MAR 10 2010-03-19 70.0 1136.75
5 MAR 10 2010-03-19 67.0 1137.50
6 MAR 10 2010-03-19 66.0 1129.00
7 MAR 10 2010-03-19 65.0 1136.75
8 MAR 10 2010-03-19 64.0 1140.25
9 MAR 10 2010-03-19 63.0 1127.50
Term2_Volume Term2_OpenInterest Term2_ContractSpec Term2_SettlementDate \
0 1641.0 3354.0 JUN 10 2010-06-18
1 686.0 3432.0 JUN 10 2010-06-18
2 1163.0 3713.0 JUN 10 2010-06-18
3 1135.0 4154.0 JUN 10 2010-06-18
4 1080.0 17466.0 JUN 10 2010-06-18
5 419.0 4638.0 JUN 10 2010-06-18
6 481.0 4765.0 JUN 10 2010-06-18
7 1174.0 5389.0 JUN 10 2010-06-18
8 333.0 5357.0 JUN 10 2010-06-18
9 1432.0 5936.0 JUN 10 2010-06-18
Term2_TTM Index OIS CumDiv_current
0 165.0 SPX 0.001620 0.058362
1 164.0 SPX 0.001550 0.060106
2 163.0 SPX 0.001460 0.558086
3 162.0 SPX 0.001450 0.619905
4 161.0 SPX 0.001430 0.619905
5 158.0 SPX 0.001430 0.619905
6 157.0 SPX 0.001415 0.619905
7 156.0 SPX 0.001470 0.733413
8 155.0 SPX 0.001430 0.755370
9 154.0 SPX 0.001380 0.799620
[SPX] as-of merged CumDiv for Term1: from 3781 -> 3781 rows.
[SPX] as-of merged CumDiv for Term2: from 3781 -> 3781 rows.
[SPX] Dropped 0 rows missing TTM or Futures_Price.
Barndorff-Nielsen filter: flagged 47 outliers in spread_SPX
[SPX] Setting 47 outliers to NaN for cal_SPX_rf & spread_SPX
[SPX] Final forward rates shape: (3781, 29)
[SPX] Sample final rows:
cal_SPX_rf ois_fwd_SPX spread_SPX
Date
2024-12-24 3.778583 4.287412 -50.882869
2024-12-26 3.796641 4.277498 -48.085749
2024-12-27 3.741256 4.277624 -53.636841
2024-12-30 3.717731 4.275913 -55.818186
2024-12-31 3.698950 4.274017 -57.506667
[NDX] Starting forward rate computation
[NDX] Loaded futures shape: (3781, 14)
[NDX] Dropped 0 rows lacking a valid Date in futures.
[NDX] as-of merged OIS: from 3781 -> 3781 rows (should be same).
[NDX] Building daily dividend table
Primary input file not found, switching to cached data
[NDX] daily dividends final shape: (3913, 2)
[NDX] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.148515
2 2010-01-05 0.000000
3 2010-01-06 0.000000
4 2010-01-07 0.000000
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.000000
9 2010-01-14 0.113752
[NDX] as-of merged CumDiv at current date: from 3781 -> 3781 rows.
[NDX] Sample merged rows with cumulative div:
Date Term1_Futures_Price Term1_Volume Term1_OpenInterest \
0 2010-01-04 1886.75 204140.0 314877.0
1 2010-01-05 1885.25 207245.0 309080.0
2 2010-01-06 1878.50 259627.0 310532.0
3 2010-01-07 1877.50 239907.0 317226.0
4 2010-01-08 1890.00 267314.0 379994.0
5 2010-01-11 1883.50 243454.0 314557.0
6 2010-01-12 1865.50 326600.0 306114.0
7 2010-01-13 1882.50 312998.0 331168.0
8 2010-01-14 1888.25 204465.0 324274.0
9 2010-01-15 1862.25 343007.0 320266.0
Term1_ContractSpec Term1_SettlementDate Term1_TTM Term2_Futures_Price \
0 MAR 10 2010-03-19 74.0 1884.75
1 MAR 10 2010-03-19 73.0 1883.00
2 MAR 10 2010-03-19 72.0 1876.50
3 MAR 10 2010-03-19 71.0 1875.00
4 MAR 10 2010-03-19 70.0 1887.25
5 MAR 10 2010-03-19 67.0 1880.75
6 MAR 10 2010-03-19 66.0 1862.75
7 MAR 10 2010-03-19 65.0 1879.75
8 MAR 10 2010-03-19 64.0 1885.50
9 MAR 10 2010-03-19 63.0 1859.75
Term2_Volume Term2_OpenInterest Term2_ContractSpec Term2_SettlementDate \
0 33.0 671.0 JUN 10 2010-06-18
1 74.0 651.0 JUN 10 2010-06-18
2 33.0 665.0 JUN 10 2010-06-18
3 47.0 672.0 JUN 10 2010-06-18
4 1001.0 6163.0 JUN 10 2010-06-18
5 288.0 898.0 JUN 10 2010-06-18
6 311.0 1077.0 JUN 10 2010-06-18
7 710.0 1699.0 JUN 10 2010-06-18
8 784.0 2401.0 JUN 10 2010-06-18
9 272.0 2533.0 JUN 10 2010-06-18
Term2_TTM Index OIS CumDiv_current
0 165.0 NDX 0.001620 0.148515
1 164.0 NDX 0.001550 0.148515
2 163.0 NDX 0.001460 0.148515
3 162.0 NDX 0.001450 0.148515
4 161.0 NDX 0.001430 0.148515
5 158.0 NDX 0.001430 0.148515
6 157.0 NDX 0.001415 0.148515
7 156.0 NDX 0.001470 0.148515
8 155.0 NDX 0.001430 0.262267
9 154.0 NDX 0.001380 0.262267
[NDX] as-of merged CumDiv for Term1: from 3781 -> 3781 rows.
[NDX] as-of merged CumDiv for Term2: from 3781 -> 3781 rows.
[NDX] Dropped 0 rows missing TTM or Futures_Price.
Barndorff-Nielsen filter: flagged 48 outliers in spread_NDX
[NDX] Setting 48 outliers to NaN for cal_NDX_rf & spread_NDX
[NDX] Final forward rates shape: (3781, 29)
[NDX] Sample final rows:
cal_NDX_rf ois_fwd_NDX spread_NDX
Date
2024-12-24 4.341428 4.287412 5.401572
2024-12-26 4.426357 4.277498 14.885916
2024-12-27 4.384662 4.277624 10.703781
2024-12-30 4.322400 4.275913 4.648708
2024-12-31 4.323851 4.274017 4.983391
[INDU] Starting forward rate computation
[INDU] Loaded futures shape: (3780, 14)
[INDU] Dropped 0 rows lacking a valid Date in futures.
[INDU] as-of merged OIS: from 3780 -> 3780 rows (should be same).
[INDU] Building daily dividend table
Primary input file not found, switching to cached data
[INDU] daily dividends final shape: (3913, 2)
[INDU] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.377875
2 2010-01-05 0.000000
3 2010-01-06 6.763957
4 2010-01-07 1.360349
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.000000
9 2010-01-14 0.000000
[INDU] as-of merged CumDiv at current date: from 3780 -> 3780 rows.
[INDU] Sample merged rows with cumulative div:
Date Term1_Futures_Price Term1_Volume Term1_OpenInterest \
0 2010-01-04 10519.0 93770.0 69420.0
1 2010-01-05 10515.0 93287.0 65749.0
2 2010-01-06 10516.0 97172.0 63888.0
3 2010-01-07 10545.0 112280.0 67401.0
4 2010-01-08 10566.0 79925.0 61714.0
5 2010-01-11 10604.0 93891.0 63318.0
6 2010-01-12 10588.0 126885.0 62710.0
7 2010-01-13 10628.0 113576.0 63479.0
8 2010-01-14 10663.0 80520.0 64500.0
9 2010-01-15 10563.0 140591.0 66826.0
Term1_ContractSpec Term1_SettlementDate Term1_TTM Term2_Futures_Price \
0 MAR 10 2010-03-19 74.0 10459.0
1 MAR 10 2010-03-19 73.0 10455.0
2 MAR 10 2010-03-19 72.0 10455.0
3 MAR 10 2010-03-19 71.0 10484.0
4 MAR 10 2010-03-19 70.0 10505.0
5 MAR 10 2010-03-19 67.0 10542.0
6 MAR 10 2010-03-19 66.0 10527.0
7 MAR 10 2010-03-19 65.0 10566.0
8 MAR 10 2010-03-19 64.0 10601.0
9 MAR 10 2010-03-19 63.0 10501.0
Term2_Volume Term2_OpenInterest Term2_ContractSpec Term2_SettlementDate \
0 100.0 175.0 JUN 10 2010-06-18
1 26.0 173.0 JUN 10 2010-06-18
2 157.0 193.0 JUN 10 2010-06-18
3 34.0 180.0 JUN 10 2010-06-18
4 146.0 531.0 JUN 10 2010-06-18
5 45.0 230.0 JUN 10 2010-06-18
6 55.0 234.0 JUN 10 2010-06-18
7 21.0 208.0 JUN 10 2010-06-18
8 11.0 206.0 JUN 10 2010-06-18
9 80.0 221.0 JUN 10 2010-06-18
Term2_TTM Index OIS CumDiv_current
0 165.0 INDU 0.001620 0.377875
1 164.0 INDU 0.001550 0.377875
2 163.0 INDU 0.001460 7.141832
3 162.0 INDU 0.001450 8.502181
4 161.0 INDU 0.001430 8.502181
5 158.0 INDU 0.001430 8.502181
6 157.0 INDU 0.001415 8.502181
7 156.0 INDU 0.001470 8.502181
8 155.0 INDU 0.001430 8.502181
9 154.0 INDU 0.001380 11.676328
[INDU] as-of merged CumDiv for Term1: from 3780 -> 3780 rows.
[INDU] as-of merged CumDiv for Term2: from 3780 -> 3780 rows.
[INDU] Dropped 0 rows missing TTM or Futures_Price.
Barndorff-Nielsen filter: flagged 43 outliers in spread_INDU
[INDU] Setting 43 outliers to NaN for cal_INDU_rf & spread_INDU
[INDU] Final forward rates shape: (3780, 29)
[INDU] Sample final rows:
cal_INDU_rf ois_fwd_INDU spread_INDU
Date
2024-12-24 3.525951 4.287412 -76.146147
2024-12-26 3.485142 4.277498 -79.235563
2024-12-27 3.459165 4.277624 -81.845864
2024-12-30 3.446690 4.275913 -82.922307
2024-12-31 3.377212 4.274017 -89.680496
All computations completed successfully.
Exploring the Functions: Visual Understanding of Implied Forward Rate Calculation#
This notebook provides a step-by-step exploration of each function in the implied forward rate calculation process, with visualizations and tables to help build intuition about what’s happening at each stage.
Data loading and preprocessing
Daily dividend accumulation
Barndorff-Nielsen outlier filtering mechanism
The forward rate calculation process
Visualization of results
Let’s break down each component visually to understand the theory.
# Function to visualize and explain daily dividends
def explore_daily_dividends(index_code="SPX"):
"""
Explore and visualize how the daily dividend function works
"""
print(f"=== Exploring build_daily_dividends for {index_code} ===")
# Load the data
input_file = Path(INPUT_DIR) / "bloomberg_historical_data.parquet"
if not input_file.exists():
input_file = Path(DATA_MANUAL) / "bloomberg_historical_data.parquet"
if not input_file.exists():
print("No Bloomberg data file found. Cannot proceed with exploration.")
return None
# Load raw data
raw_df = pd.read_parquet(input_file)
# Show the structure of the raw dataframe
print("\nRaw Bloomberg data structure:")
print(f"Shape: {raw_df.shape}")
print("Column structure (MultiIndex):")
print(raw_df.columns[:10]) # Show first 10 columns
# Extract dividend column
div_col = (f"{index_code} Index", "INDX_GROSS_DAILY_DIV")
if div_col not in raw_df.columns:
print(f"Missing dividend column for {index_code}. Trying a different approach...")
# Try to find any dividend-related columns
div_cols = [col for col in raw_df.columns if 'DIV' in str(col)]
if div_cols:
print(f"Found potential dividend columns: {div_cols}")
div_col = div_cols[0]
else:
print("No dividend columns found in the data.")
return None
# Process dividends as in the original function
div_df = raw_df.loc[:, div_col].to_frame("Daily_Div").reset_index()
div_df.rename(columns={"index": "Date"}, inplace=True)
div_df["Date"] = pd.to_datetime(div_df["Date"], errors="coerce")
div_df["Daily_Div"] = div_df["Daily_Div"].fillna(0)
div_df.dropna(subset=["Date"], inplace=True)
div_df.sort_values("Date", inplace=True)
div_df.reset_index(drop=True, inplace=True)
# Create cumulative sum column
div_df["CumDiv"] = div_df["Daily_Div"].cumsum()
# Display processed data
print("\nProcessed dividend data (first 5 rows):")
display(div_df.head())

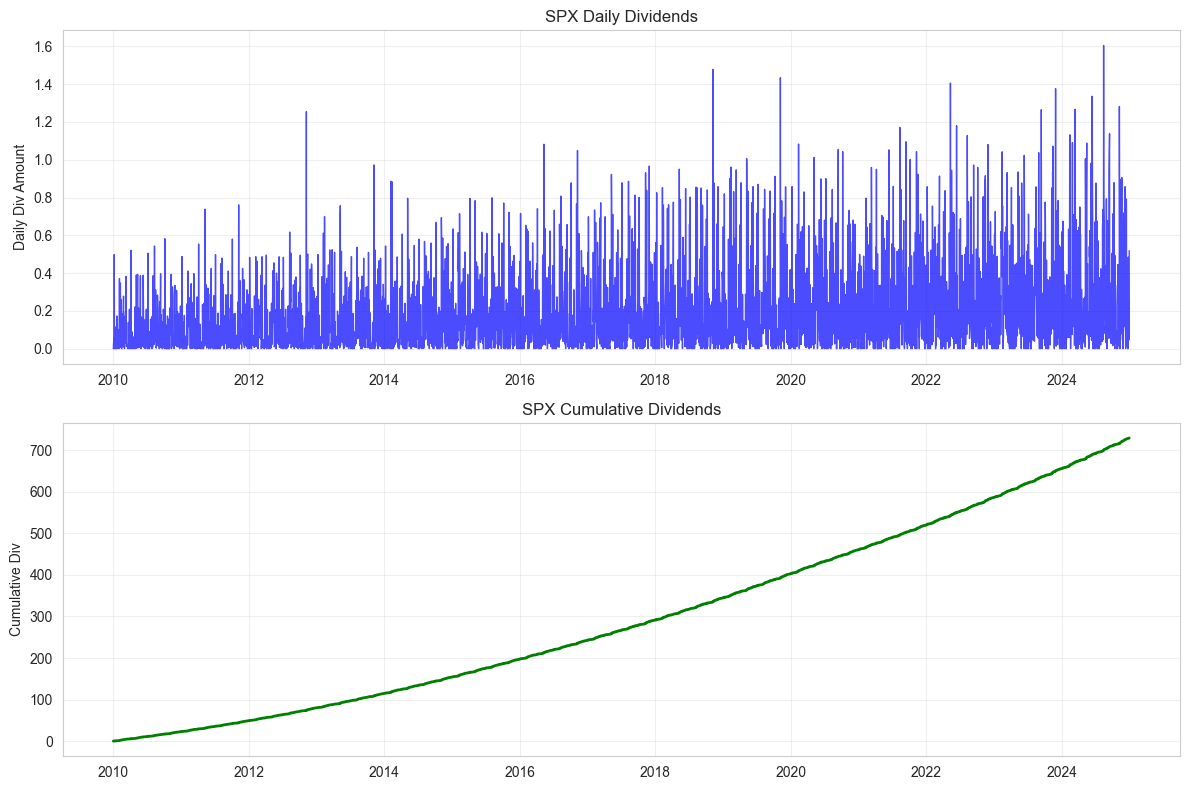

# Visualize daily dividends
plt.figure(figsize=(12, 8))
# Subplot 1: Daily dividends over time
plt.subplot(2, 1, 1)
plt.plot(div_df["Date"], div_df["Daily_Div"], 'b-', alpha=0.7, linewidth=1)
plt.title(f"{index_code} Daily Dividends")
plt.ylabel("Daily Div Amount")
plt.grid(True, alpha=0.3)
# Subplot 2: Cumulative dividends
plt.subplot(2, 1, 2)
plt.plot(div_df["Date"], div_df["CumDiv"], 'g-', linewidth=2)
plt.title(f"{index_code} Cumulative Dividends")
plt.ylabel("Cumulative Div")
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# Summary statistics
print("\nDividend Data Summary:")
summary = div_df["Daily_Div"].describe()
display(summary)
# Show time periods with zero and non-zero dividends
zero_div = div_df[div_df["Daily_Div"] == 0].shape[0]
total = div_df.shape[0]
print(f"Days with zero dividends: {zero_div} ({zero_div/total:.1%} of total)")
print(f"Days with non-zero dividends: {total - zero_div} ({(total-zero_div)/total:.1%} of total)")
# Monthly dividend patterns (Useful to see if there are dividend seasons)
div_df['month'] = div_df['Date'].dt.month
div_df['year'] = div_df['Date'].dt.year
monthly_pattern = div_df.groupby('month')['Daily_Div'].mean()

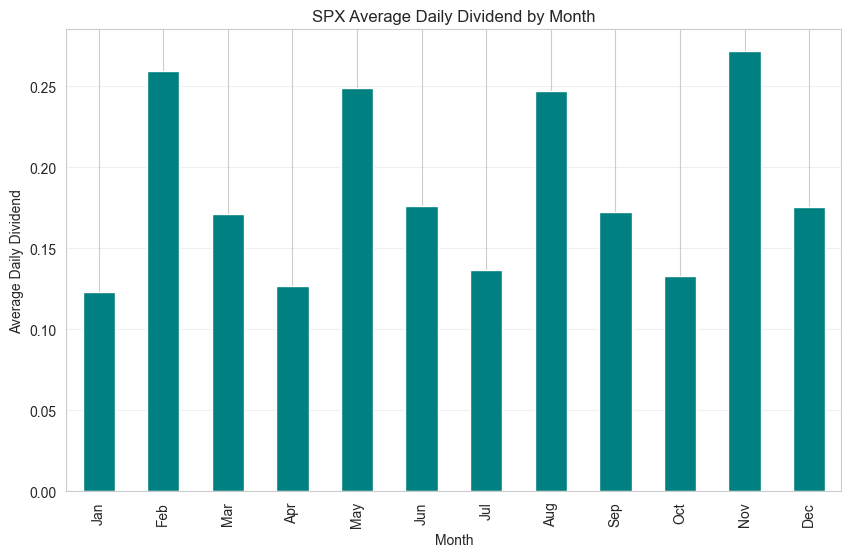

plt.figure(figsize=(10, 6))
monthly_pattern.plot(kind='bar', color='teal')
plt.title(f"{index_code} Average Daily Dividend by Month")
plt.xlabel("Month")
plt.ylabel("Average Daily Dividend")
plt.xticks(range(12), ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'])
plt.grid(True, alpha=0.3, axis='y')
plt.show()
return div_df
# Run the exploration
spx_div_df = explore_daily_dividends("SPX")
=== Exploring build_daily_dividends for SPX ===
Raw Bloomberg data structure:
Shape: (3913, 62)
Column structure (MultiIndex):
MultiIndex([( 'SPX Index', 'PX_LAST'),
( 'SPX Index', 'IDX_EST_DVD_YLD'),
( 'SPX Index', 'INDX_GROSS_DAILY_DIV'),
( 'NDX Index', 'PX_LAST'),
( 'NDX Index', 'IDX_EST_DVD_YLD'),
( 'NDX Index', 'INDX_GROSS_DAILY_DIV'),
('INDU Index', 'PX_LAST'),
('INDU Index', 'IDX_EST_DVD_YLD'),
('INDU Index', 'INDX_GROSS_DAILY_DIV'),
( 'ES1 Index', 'PX_LAST')],
)
Processed dividend data (first 5 rows):
| Date | Daily_Div | CumDiv | |
|---|---|---|---|
| 0 | 2010-01-01 | 0.000000 | 0.000000 |
| 1 | 2010-01-04 | 0.058362 | 0.058362 |
| 2 | 2010-01-05 | 0.001744 | 0.060106 |
| 3 | 2010-01-06 | 0.497980 | 0.558086 |
| 4 | 2010-01-07 | 0.061819 | 0.619905 |
Dividend Data Summary:
count 3913.000000
mean 0.186435
std 0.228265
min 0.000000
25% 0.022825
50% 0.095385
75% 0.271259
max 1.604820
Name: Daily_Div, dtype: float64
Days with zero dividends: 447 (11.4% of total)
Days with non-zero dividends: 3466 (88.6% of total)
Understanding Daily Dividends#
The build_daily_dividends() function extracts daily dividend information from the Bloomberg data and prepares it for use in the forward rate calculations.
Key observations:
The function extracts a specific column from a multi-index DataFrame
It converts dates, fills missing values with zeros, and sorts by date
Daily dividends are typically sparse - many days have zero dividends
The cumulative dividend is critical for the forward rate calculation
There may be seasonal patterns in dividend payments
The visualizations show both the daily dividend amounts (which are typically spiky) and the cumulative dividends (which grow over time). The monthly pattern chart helps identify any seasonality in dividend payments.
These dividend values will be used in the Div_Sum1 and Div_Sum2 calculations, which represent the expected dividends between the current date and the settlement dates.
def explore_barndorff_nielsen_filter():
"""
Demonstrate how the Barndorff-Nielsen outlier filter works with a synthetic dataset
"""
print("=== Exploring Barndorff-Nielsen Filter ===")
# Create a synthetic time series with some outliers
np.random.seed(42)
dates = pd.date_range(start='2020-01-01', periods=200)
# Base series with some seasonality and trend
base = np.linspace(0, 10, 200) + 2 * np.sin(np.linspace(0, 10, 200))
# Add noise
noise = np.random.normal(0, 0.5, 200)
# Add outliers
outliers_idx = [20, 50, 80, 120, 150, 190]
outliers = np.zeros(200)
for idx in outliers_idx:
outliers[idx] = np.random.choice([-1, 1]) * np.random.uniform(3, 5)
# Combined series
values = base + noise + outliers
# Create DataFrame
df = pd.DataFrame({
'Date': dates,
'value': values
})
# Visualize the original series

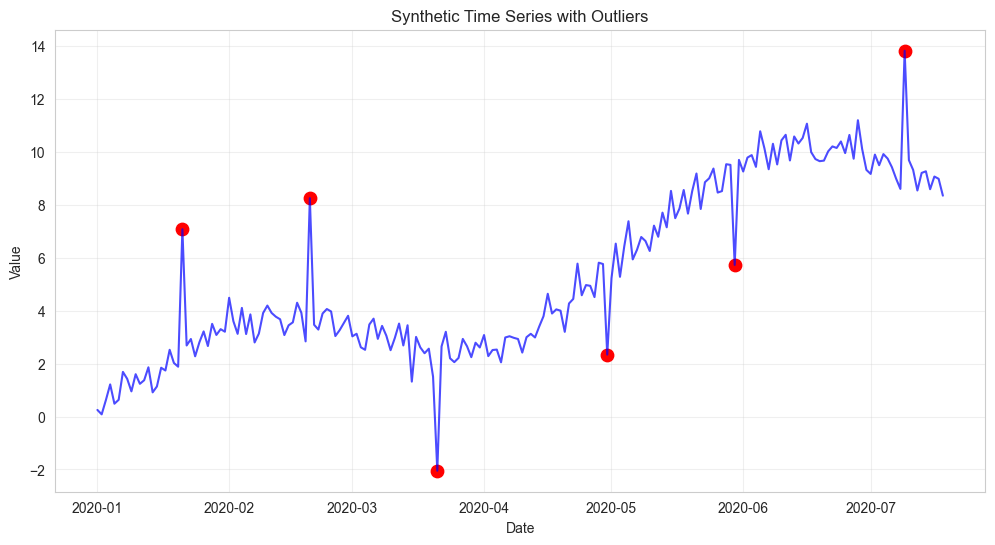

plt.figure(figsize=(12, 6))
plt.plot(df['Date'], df['value'], 'b-', alpha=0.7)
for idx in outliers_idx:
plt.scatter(df['Date'][idx], df['value'][idx], color='red', s=80)
plt.title('Synthetic Time Series with Outliers')
plt.xlabel('Date')
plt.ylabel('Value')
plt.grid(True, alpha=0.3)
plt.show()
# Apply the Barndorff-Nielsen filter
window = 10 # Smaller window for demonstration
threshold = 3.0 # Lower threshold to catch all our synthetic outliers
# Sort the data
df = df.sort_values('Date')
# Calculate rolling median
rolling_median = df['value'].rolling(window=window*2+1, center=True, min_periods=1).median()
rolling_median_shifted = rolling_median.shift(1)
# Calculate absolute deviation
df['abs_dev'] = (df['value'] - rolling_median_shifted).abs()
# Calculate rolling MAD (Mean Absolute Deviation)
rolling_mad = df['abs_dev'].rolling(window=window*2+1, center=True, min_periods=1).mean()
rolling_mad_shifted = rolling_mad.shift(1)
# Calculate standardized deviation
df['std_dev'] = df['abs_dev'] / rolling_mad_shifted
# Determine outliers
df['is_outlier'] = df['std_dev'] >= threshold
df.loc[df['value'].isna(), 'is_outlier'] = False
# Create filtered series
df['value_filtered'] = df['value'].where(~df['is_outlier'], np.nan)
# Show step-by-step calculations for better understanding
print("\nStep-by-step filter process (showing sample rows):")
display(df[['Date', 'value', 'abs_dev', 'std_dev', 'is_outlier', 'value_filtered']].iloc[15:25])

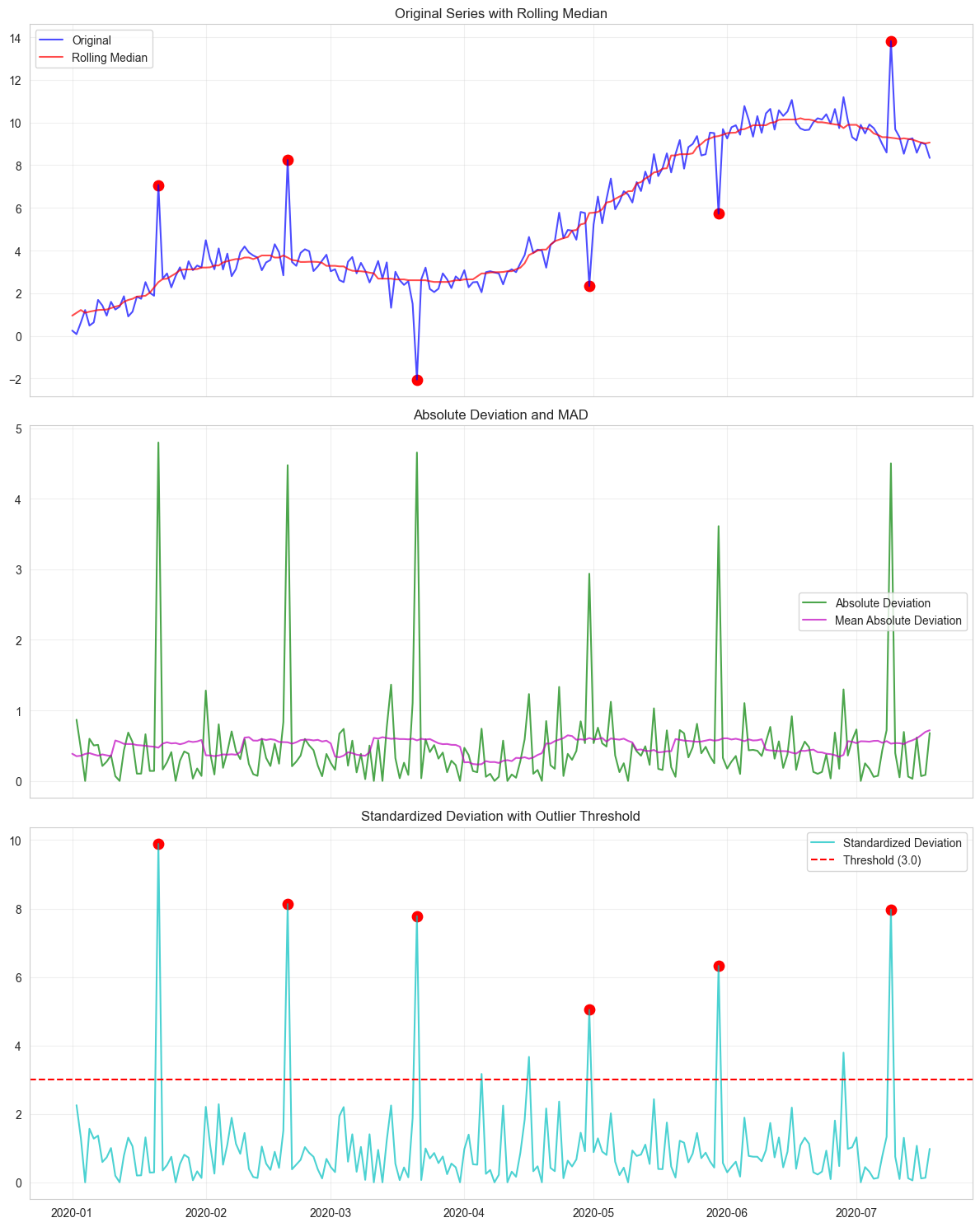

# Visualize the filtering steps
fig, axes = plt.subplots(3, 1, figsize=(12, 15), sharex=True)
# Original with rolling median
axes[0].plot(df['Date'], df['value'], 'b-', alpha=0.7, label='Original')
axes[0].plot(df['Date'], rolling_median, 'r-', alpha=0.7, label='Rolling Median')
for idx in outliers_idx:
axes[0].scatter(df['Date'][idx], df['value'][idx], color='red', s=80)
axes[0].set_title('Original Series with Rolling Median')
axes[0].grid(True, alpha=0.3)
axes[0].legend()
# Absolute Deviation and Mean Absolute Deviation
axes[1].plot(df['Date'], df['abs_dev'], 'g-', alpha=0.7, label='Absolute Deviation')
axes[1].plot(df['Date'], rolling_mad, 'm-', alpha=0.7, label='Mean Absolute Deviation')
axes[1].set_title('Absolute Deviation and MAD')
axes[1].grid(True, alpha=0.3)
axes[1].legend()
# Standardized Deviation with Threshold
axes[2].plot(df['Date'], df['std_dev'], 'c-', alpha=0.7, label='Standardized Deviation')
axes[2].axhline(y=threshold, color='r', linestyle='--', label=f'Threshold ({threshold})')
for idx in outliers_idx:
if idx < len(df) and df['is_outlier'].iloc[idx]:
axes[2].scatter(df['Date'][idx], df['std_dev'][idx], color='red', s=80)
axes[2].set_title('Standardized Deviation with Outlier Threshold')
axes[2].grid(True, alpha=0.3)
axes[2].legend()
plt.tight_layout()
plt.show()

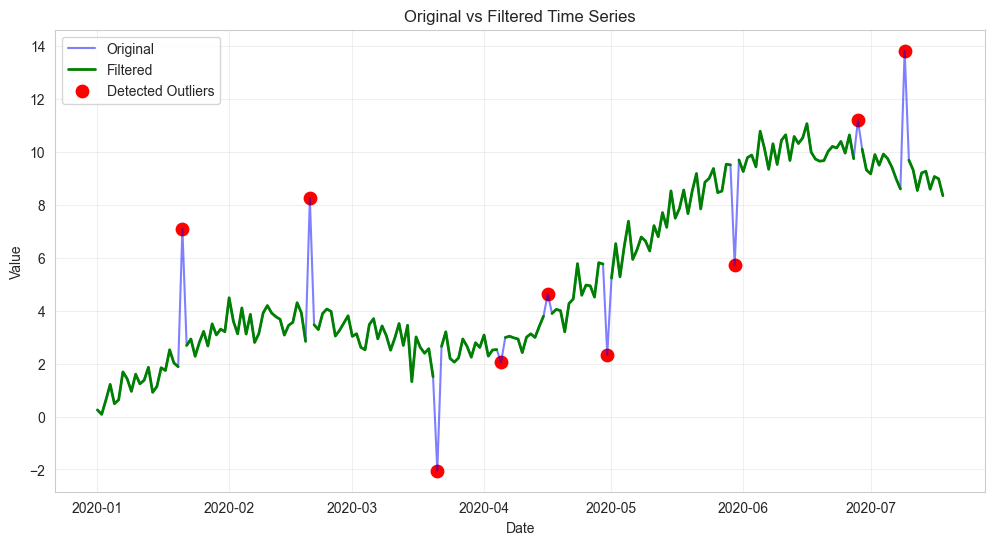

# Compare original vs filtered
plt.figure(figsize=(12, 6))
plt.plot(df['Date'], df['value'], 'b-', alpha=0.5, label='Original')
plt.plot(df['Date'], df['value_filtered'], 'g-', linewidth=2, label='Filtered')
detected_outliers = df[df['is_outlier']].index
plt.scatter(df['Date'][detected_outliers], df['value'][detected_outliers],
color='red', s=80, label='Detected Outliers')
plt.title('Original vs Filtered Time Series')
plt.xlabel('Date')
plt.ylabel('Value')
plt.grid(True, alpha=0.3)
plt.legend()
plt.show()
# Summary of outlier detection
detected_count = df['is_outlier'].sum()
print(f"\nSummary: Detected {detected_count} outliers out of {len(df)} observations")
# Check how many of our artificial outliers were detected
true_positive = 0
for idx in outliers_idx:
if idx < len(df) and df['is_outlier'].iloc[idx]:
true_positive += 1
print(f"True outliers detected: {true_positive} out of {len(outliers_idx)}")
if len(outliers_idx) > 0:
print(f"Detection rate: {true_positive/len(outliers_idx):.1%}")
return df
# Run the exploration
bn_filter_df = explore_barndorff_nielsen_filter()
=== Exploring Barndorff-Nielsen Filter ===
Step-by-step filter process (showing sample rows):
| Date | value | abs_dev | std_dev | is_outlier | value_filtered | |
|---|---|---|---|---|---|---|
| 15 | 2020-01-16 | 1.841408 | 0.103501 | 0.197860 | False | 1.841408 |
| 16 | 2020-01-17 | 1.737907 | 0.103501 | 0.203625 | False | 1.737907 |
| 17 | 2020-01-18 | 2.519580 | 0.661327 | 1.311529 | False | 2.519580 |
| 18 | 2020-01-19 | 2.022771 | 0.141783 | 0.284550 | False | 2.022771 |
| 19 | 2020-01-20 | 1.880988 | 0.141783 | 0.289496 | False | 1.880988 |
| 20 | 2020-01-21 | 7.071302 | 4.797679 | 9.889070 | True | NaN |
| 21 | 2020-01-22 | 2.682461 | 0.162881 | 0.345661 | False | 2.682461 |
| 22 | 2020-01-23 | 2.926694 | 0.265088 | 0.501126 | False | 2.926694 |
| 23 | 2020-01-24 | 2.273623 | 0.408838 | 0.746192 | False | 2.273623 |
| 24 | 2020-01-25 | 2.802253 | 0.000000 | 0.000000 | False | 2.802253 |
Summary: Detected 9 outliers out of 200 observations
True outliers detected: 6 out of 6
Detection rate: 100.0%
Understanding Barndorff-Nielsen Outlier Filter#
The Barndorff-Nielsen filter is a robust statistical method for detecting and removing outliers in time series data. Following the paper’s methedology:
Rolling Median Calculation:
For each point, calculate the median value within a window (±45 days by default)
This establishes a robust estimate of the “normal” value at each point
Absolute Deviation:
Calculate how far each value deviates from the rolling median
The shift(1) ensures we’re using previously known information
Mean Absolute Deviation (MAD):
Calculate the average of absolute deviations within the window
This establishes what constitutes a “normal” amount of deviation
Standardized Deviation:
Divide each absolute deviation by the MAD
This creates a standardized measure of how unusual each deviation is
Outlier Detection:
Points where standardized deviation ≥ threshold (default 10.0) are marked as outliers
These points are replaced with NaN in the filtered series
The filter is particularly useful for financial time series where sudden jumps can occur due to data errors or extreme market events that shouldn’t influence calculations of normal behavior.
In the spread calculation, this prevents outliers from distorting the implied forward rates.
def explore_forward_rate_calculation(index_code="SPX"):
"""
Explore the steps of the forward rate calculation visually
"""
print(f"=== Exploring Forward Rate Calculation for {index_code} ===")
# Load necessary data
fut_file = Path(PROCESSED_DIR) / f"{index_code}_Calendar_spread.csv"
ois_file = Path(PROCESSED_DIR) / "cleaned_ois_rates.csv"
# Check if files exist
if not fut_file.exists() or not ois_file.exists():
print("Required data files not found. Cannot proceed with exploration.")
return None
# Load calendar spreads
fut_df = pd.read_csv(fut_file)
fut_df["Date"] = pd.to_datetime(fut_df["Date"], errors="coerce")
fut_df.dropna(subset=["Date"], inplace=True)
fut_df["Term1_SettlementDate"] = pd.to_datetime(fut_df["Term1_SettlementDate"], errors="coerce")
fut_df["Term2_SettlementDate"] = pd.to_datetime(fut_df["Term2_SettlementDate"], errors="coerce")
fut_df.sort_values("Date", inplace=True)
# Display calendar spread data
print("\nFutures Calendar Spread data (first 5 rows):")
display(fut_df.head())
# Load OIS rates
ois_df = pd.read_csv(ois_file)
if "Date" not in ois_df.columns:
ois_df.rename(columns={"Unnamed: 0": "Date"}, inplace=True)
ois_df["Date"] = pd.to_datetime(ois_df["Date"], errors="coerce")
ois_df.sort_values("Date", inplace=True)
# Display OIS rates
print("\nOIS rates data (first 5 rows):")
display(ois_df.head())
# Chart the OIS rates
plt.figure(figsize=(12, 6))
plt.plot(ois_df["Date"], ois_df["OIS_3M"], 'g-', linewidth=2)

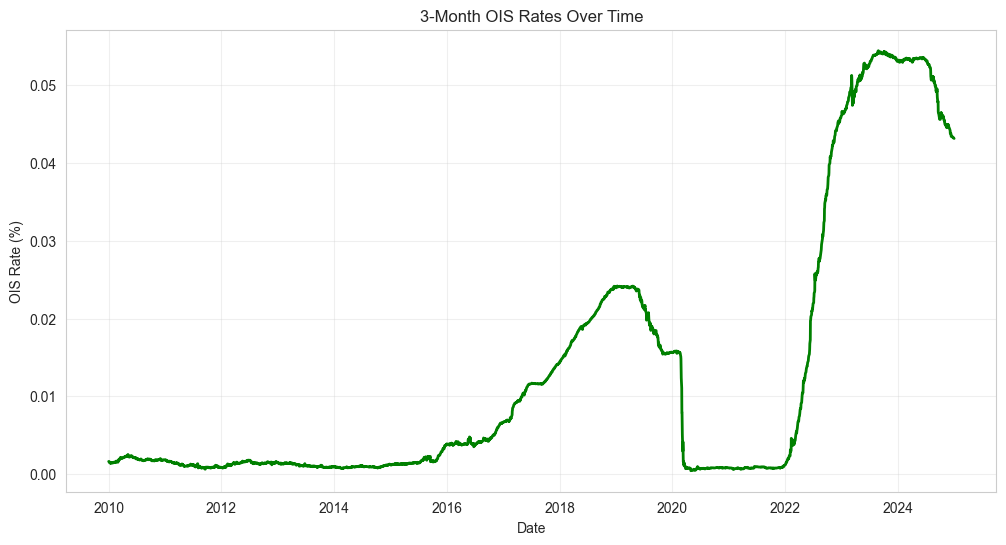

plt.title("3-Month OIS Rates Over Time")
plt.xlabel("Date")
plt.ylabel("OIS Rate (%)")
plt.grid(True, alpha=0.3)
plt.show()
# Merge futures and OIS data
merged_df = pd.merge_asof(
fut_df.sort_values("Date"),
ois_df,
on="Date",
direction="backward"
)
if "OIS_3M" in merged_df.columns:
merged_df.rename(columns={"OIS_3M": "OIS"}, inplace=True)
# Load dividends
div_df = build_daily_dividends(index_code)
div_df["CumDiv"] = div_df["Daily_Div"].cumsum()
# Merge with current date cumulative dividends
merged_df = pd.merge_asof(
merged_df.sort_values("Date"),
div_df[["Date", "CumDiv"]].sort_values("Date"),
on="Date",
direction="backward"
)
merged_df.rename(columns={"CumDiv": "CumDiv_current"}, inplace=True)
# Merge with Term1 and Term2 settlement date cumulative dividends
t1_df = div_df.rename(columns={"Date": "Term1_SettlementDate", "CumDiv": "CumDiv_Term1"})
merged_df = pd.merge_asof(
merged_df.sort_values("Term1_SettlementDate"),
t1_df.sort_values("Term1_SettlementDate"),
on="Term1_SettlementDate",
direction="backward"
)
t2_df = div_df.rename(columns={"Date": "Term2_SettlementDate", "CumDiv": "CumDiv_Term2"})
merged_df = pd.merge_asof(
merged_df.sort_values("Term2_SettlementDate"),
t2_df.sort_values("Term2_SettlementDate"),
on="Term2_SettlementDate",
direction="backward"
)
# Calculate dividend sums
merged_df["Div_Sum1"] = merged_df["CumDiv_Term1"] - merged_df["CumDiv_current"]
merged_df["Div_Sum2"] = merged_df["CumDiv_Term2"] - merged_df["CumDiv_current"]
# Display intermediate calculation
print("\nIntermediate calculation with dividend sums (sample rows):")
display(merged_df[["Date", "Term1_TTM", "Term2_TTM", "Term1_Futures_Price",
"Term2_Futures_Price", "OIS", "Div_Sum1", "Div_Sum2"]].head())
# Remove rows with missing TTM or price data
merged_df.dropna(subset=["Term1_TTM", "Term2_TTM", "Term1_Futures_Price", "Term2_Futures_Price"], inplace=True)
# Step-by-step calculation visualization
# 1. Compounding dividends
merged_df["Div_Sum1_Comp"] = merged_df["Div_Sum1"] * (
((merged_df["Term1_TTM"] / 2.0) / 360.0) * merged_df["OIS"] + 1.0
)
merged_df["Div_Sum2_Comp"] = merged_df["Div_Sum2"] * (
((merged_df["Term2_TTM"] / 2.0) / 360.0) * merged_df["OIS"] + 1.0
)
# Show effect of compounding
print("\nEffect of compounding on dividends (sample rows):")
display(merged_df[["Date", "Div_Sum1", "Div_Sum1_Comp", "Div_Sum2", "Div_Sum2_Comp"]].head())
# 2. Implied forward rate calculation
merged_df["implied_forward_raw"] = (
(merged_df["Term2_Futures_Price"] + merged_df["Div_Sum2_Comp"]) /
(merged_df["Term1_Futures_Price"] + merged_df["Div_Sum1_Comp"])
- 1.0
)
dt = merged_df["Term2_TTM"] - merged_df["Term1_TTM"]
merged_df[f"cal_{index_code}_rf"] = np.where(
dt > 0,
100.0 * merged_df["implied_forward_raw"] * (360.0 / dt),
np.nan
)
# 3. OIS-implied forward rate
merged_df["ois_fwd_raw"] = (
(1.0 + merged_df["OIS"] * merged_df["Term2_TTM"] / 360.0) /
(1.0 + merged_df["OIS"] * merged_df["Term1_TTM"] / 360.0)
- 1.0
)
merged_df[f"ois_fwd_{index_code}"] = np.where(
dt > 0,
merged_df["ois_fwd_raw"] * (360.0 / dt) * 100.0,
np.nan
)
# 4. Spread calculation
spread_col = f"spread_{index_code}"
merged_df[spread_col] = merged_df[f"cal_{index_code}_rf"] - merged_df[f"ois_fwd_{index_code}"]
# Show forward rate calculations
print("\nForward rate calculations (sample rows):")
display(merged_df[[
"Date",
"implied_forward_raw",
f"cal_{index_code}_rf",
"ois_fwd_raw",
f"ois_fwd_{index_code}",
spread_col
]].head())
# Apply Barndorff-Nielsen filter
filtered_df = barndorff_nielsen_filter(merged_df, spread_col, date_col="Date", window=45, threshold=10)
# Set outliers to NaN
out_mask = filtered_df[f"{spread_col}_filtered"].isna()
filtered_df.loc[out_mask, f"cal_{index_code}_rf"] = np.nan
filtered_df.loc[out_mask, spread_col] = np.nan
# Multiply spread by 100 for bps
filtered_df[spread_col] = filtered_df[spread_col] * 100.0
# Set index to Date for time series plots
filtered_df.set_index("Date", inplace=True)
# Visualize the forward rates and spread

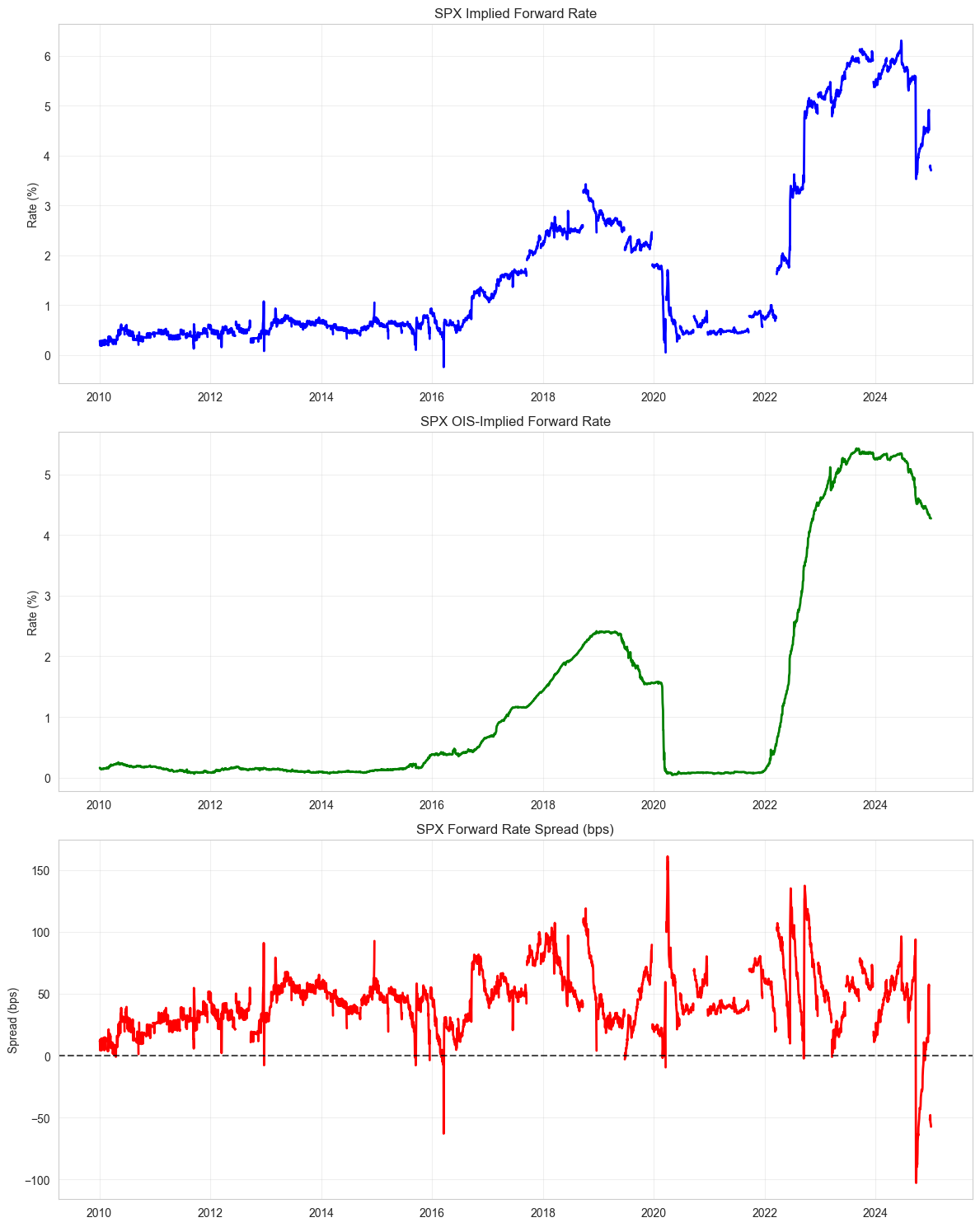

plt.figure(figsize=(12, 15))
# Plot 1: Implied Forward Rate
plt.subplot(3, 1, 1)
plt.plot(filtered_df.index, filtered_df[f"cal_{index_code}_rf"], 'b-', linewidth=2)
plt.title(f"{index_code} Implied Forward Rate")
plt.ylabel("Rate (%)")
plt.grid(True, alpha=0.3)
# Plot 2: OIS Forward Rate
plt.subplot(3, 1, 2)
plt.plot(filtered_df.index, filtered_df[f"ois_fwd_{index_code}"], 'g-', linewidth=2)
plt.title(f"{index_code} OIS-Implied Forward Rate")
plt.ylabel("Rate (%)")
plt.grid(True, alpha=0.3)
# Plot 3: Spread
plt.subplot(3, 1, 3)
plt.plot(filtered_df.index, filtered_df[spread_col], 'r-', linewidth=2)
plt.axhline(y=0, color='k', linestyle='--', alpha=0.7)
plt.title(f"{index_code} Forward Rate Spread (bps)")
plt.ylabel("Spread (bps)")
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# Visualize the term structure
plt.figure(figsize=(10, 6))
# Get a sample date for demonstration
sample_date = filtered_df.index[len(filtered_df) // 2] # Middle of the dataset
print(f"\nTerm structure visualization for date: {sample_date}")
# Filter for a reasonable window around the sample date
date_window = 5 # Days
sample_window = filtered_df.index.get_indexer([sample_date], method='nearest')[0]
sample_window_start = max(0, sample_window - date_window)
sample_window_end = min(len(filtered_df), sample_window + date_window)
sample_data = filtered_df.iloc[sample_window_start:sample_window_end]
# Plot term structure
for date in sample_data.index:
row = filtered_df.loc[date]
plt.scatter(row["Term1_TTM"], row[f"cal_{index_code}_rf"], color='blue', label='Near Term' if date == sample_data.index[0] else "")
plt.scatter(row["Term2_TTM"], row[f"ois_fwd_{index_code}"], color='green', label='Far Term' if date == sample_data.index[0] else "")
# Connect the points with a line
plt.plot([row["Term1_TTM"], row["Term2_TTM"]],
[row[f"cal_{index_code}_rf"], row[f"ois_fwd_{index_code}"]],
'k--', alpha=0.3)

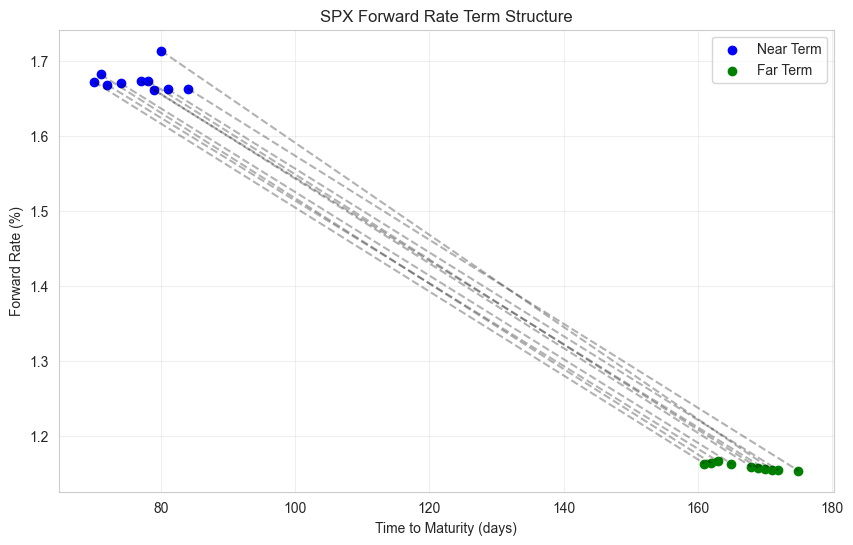

plt.title(f"{index_code} Forward Rate Term Structure")
plt.xlabel("Time to Maturity (days)")
plt.ylabel("Forward Rate (%)")
plt.grid(True, alpha=0.3)
plt.legend()
plt.show()
return filtered_df
# Run the exploration
forward_rate_df = explore_forward_rate_calculation("SPX")
=== Exploring Forward Rate Calculation for SPX ===
Futures Calendar Spread data (first 5 rows):
| Date | Term1_Futures_Price | Term1_Volume | Term1_OpenInterest | Term1_ContractSpec | Term1_SettlementDate | Term1_TTM | Term2_Futures_Price | Term2_Volume | Term2_OpenInterest | Term2_ContractSpec | Term2_SettlementDate | Term2_TTM | Index | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 2010-01-04 | 1128.75 | 1282633.0 | 2440458.0 | MAR 10 | 2010-03-19 | 74.0 | 1124.00 | 1641.0 | 3354.0 | JUN 10 | 2010-06-18 | 165.0 | SPX |
| 1 | 2010-01-05 | 1132.25 | 1368386.0 | 2402850.0 | MAR 10 | 2010-03-19 | 73.0 | 1127.50 | 686.0 | 3432.0 | JUN 10 | 2010-06-18 | 164.0 | SPX |
| 2 | 2010-01-06 | 1133.00 | 1252015.0 | 2396493.0 | MAR 10 | 2010-03-19 | 72.0 | 1128.00 | 1163.0 | 3713.0 | JUN 10 | 2010-06-18 | 163.0 | SPX |
| 3 | 2010-01-07 | 1137.50 | 1553963.0 | 2406352.0 | MAR 10 | 2010-03-19 | 71.0 | 1132.50 | 1135.0 | 4154.0 | JUN 10 | 2010-06-18 | 162.0 | SPX |
| 4 | 2010-01-08 | 1141.50 | 1508175.0 | 2758348.0 | MAR 10 | 2010-03-19 | 70.0 | 1136.75 | 1080.0 | 17466.0 | JUN 10 | 2010-06-18 | 161.0 | SPX |
OIS rates data (first 5 rows):
| Date | OIS_3M | |
|---|---|---|
| 0 | 2010-01-01 | 0.00162 |
| 1 | 2010-01-04 | 0.00162 |
| 2 | 2010-01-05 | 0.00155 |
| 3 | 2010-01-06 | 0.00146 |
| 4 | 2010-01-07 | 0.00145 |
[SPX] Building daily dividend table
Primary input file not found, switching to cached data
[SPX] daily dividends final shape: (3913, 2)
[SPX] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.058362
2 2010-01-05 0.001744
3 2010-01-06 0.497980
4 2010-01-07 0.061819
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.113508
9 2010-01-14 0.021957
Intermediate calculation with dividend sums (sample rows):
| Date | Term1_TTM | Term2_TTM | Term1_Futures_Price | Term2_Futures_Price | OIS | Div_Sum1 | Div_Sum2 | |
|---|---|---|---|---|---|---|---|---|
| 0 | 2010-01-04 | 74.0 | 165.0 | 1128.75 | 1124.00 | 0.00162 | 4.840390 | 10.382986 |
| 1 | 2010-01-05 | 73.0 | 164.0 | 1132.25 | 1127.50 | 0.00155 | 4.838646 | 10.381242 |
| 2 | 2010-01-06 | 72.0 | 163.0 | 1133.00 | 1128.00 | 0.00146 | 4.340666 | 9.883262 |
| 3 | 2010-01-07 | 71.0 | 162.0 | 1137.50 | 1132.50 | 0.00145 | 4.278847 | 9.821443 |
| 4 | 2010-01-08 | 70.0 | 161.0 | 1141.50 | 1136.75 | 0.00143 | 4.278847 | 9.821443 |
Effect of compounding on dividends (sample rows):
| Date | Div_Sum1 | Div_Sum1_Comp | Div_Sum2 | Div_Sum2_Comp | |
|---|---|---|---|---|---|
| 0 | 2010-01-04 | 4.840390 | 4.841196 | 10.382986 | 10.386841 |
| 1 | 2010-01-05 | 4.838646 | 4.839406 | 10.381242 | 10.384907 |
| 2 | 2010-01-06 | 4.340666 | 4.341300 | 9.883262 | 9.886529 |
| 3 | 2010-01-07 | 4.278847 | 4.279459 | 9.821443 | 9.824647 |
| 4 | 2010-01-08 | 4.278847 | 4.279442 | 9.821443 | 9.824584 |
Forward rate calculations (sample rows):
| Date | implied_forward_raw | cal_SPX_rf | ois_fwd_raw | ois_fwd_SPX | spread_SPX | |
|---|---|---|---|---|---|---|
| 0 | 2010-01-04 | 0.000702 | 0.277667 | 0.000409 | 0.161946 | 0.115721 |
| 1 | 2010-01-05 | 0.000700 | 0.276762 | 0.000392 | 0.154951 | 0.121811 |
| 2 | 2010-01-06 | 0.000479 | 0.189648 | 0.000369 | 0.145957 | 0.043691 |
| 3 | 2010-01-07 | 0.000477 | 0.188897 | 0.000366 | 0.144959 | 0.043939 |
| 4 | 2010-01-08 | 0.000694 | 0.274539 | 0.000361 | 0.142960 | 0.131579 |
Barndorff-Nielsen filter: flagged 47 outliers in spread_SPX
Term structure visualization for date: 2017-06-30 00:00:00
Understanding the Forward Rate Calculation Process#
When computing equity spot-futures arbitrage for an index ( S_t ) paying dividends from ( t ) to ( t + \tau ), we combine:
Futures Prices (from the nearest and next-nearest futures contracts)
OIS Rates (as a proxy for the risk-free rate)
Realized Dividends (as a simple forecast of expected dividends)
These are merged into a single DataFrame, from which we derive an implied forward rate ( \cal{rf} ) and compare it with the OIS-implied forward rate to compute an arbitrage spread.
1. Data Preparation & Merging#
Calendar Spread Data
Provides columns for:Term1_Futures_PriceandTerm2_Futures_Price(prices for near-term and deferred futures)Term1_SettlementDateandTerm2_SettlementDateTerm1_TTMandTerm2_TTM(time-to-maturity in days)
OIS Rates
Contains daily 3-month OIS rates, merged into the calendar spread data via an as-of backward merge onDate.Dividends
We accumulate daily dividends into a
CumDivseries.Merged at both the current date and each futures settlement date to approximate how much dividend would be paid between now and each maturity.
2. Dividend Sums#
Let:
\( \text{CumDiv}_\text{current} \) = cumulative dividend at the current date
\( \text{CumDiv}_{\text{Term1}} \) = cumulative dividend at the Term1 settlement date
\( \text{CumDiv}_{\text{Term2}} \) = cumulative dividend at the Term2 settlement date
Then:
\[
\text{Div\_Sum1} = \text{CumDiv}_{\text{Term1}} - \text{CumDiv}_\text{current},
\quad
\text{Div\_Sum2} = \text{CumDiv}_{\text{Term2}} - \text{CumDiv}_\text{current}.
\]
3. Dividend Compounding#
We apply a half-interval compounding for each dividend sum:
\[
\text{Div\_Sum1\_Comp} \;=\; \text{Div\_Sum1} \times
\Bigl(\bigl(\tfrac{\text{Term1\_TTM}}{2 \times 360}\bigr) \times \text{OIS} \;+\; 1.0\Bigr).
\]
\[
\text{Div\_Sum2\_Comp} \;=\; \text{Div\_Sum2} \times
\Bigl(\bigl(\tfrac{\text{Term2\_TTM}}{2 \times 360}\bigr) \times \text{OIS} \;+\; 1.0\Bigr).
\]
4. Implied Forward Rate#
From Hazelkorn et al. (2021), the raw implied forward rate (over (\tau_1) to (\tau_2)) is:
\[
\text{implied\_forward\_raw} \;=\;
\frac{\text{Term2\_Futures\_Price} + \text{Div\_Sum2\_Comp}}{\text{Term1\_Futures\_Price} + \text{Div\_Sum1\_Comp}}
\;-\; 1.
\]
We annualize this raw rate by multiplying according to the difference in time-to-maturity ((\text{Term2_TTM} - \text{Term1_TTM})):
\[
\text{cal\_rf}_{index} \;=\;
100 \times \text{implied\_forward\_raw} \;\times\;
\frac{360}{\text{Term2\_TTM} - \text{Term1\_TTM}}.
\]
5. OIS-Implied Forward Rate#
Similarly, we estimate how OIS would imply a forward rate between (\tau_1) and (\tau_2):
\[
\text{ois\_fwd\_raw} \;=\;
\frac{1 + \text{OIS} \times \tfrac{\text{Term2\_TTM}}{360}}
{1 + \text{OIS} \times \tfrac{\text{Term1\_TTM}}{360}}
\;-\; 1.
\]
We annualize it in the same manner:
\[
\text{ois\_fwd}_{index} \;=\;
\text{ois\_fwd\_raw} \;\times\;
\frac{360}{\text{Term2\_TTM} - \text{Term1\_TTM}} \;\times\; 100.
\]
6. Spread Calculation#
We define the arbitrage spread in basis points (bps) as:
\[
\text{spread}_{index} \;=\;
\bigl(\text{cal\_rf}_{index} - \text{ois\_fwd}_{index}\bigr) \times 100.
\]
A positive spread indicates the futures-implied forward rate is higher than the OIS-implied rate.
7. Outlier Filtering#
We apply a Barndorff–Nielsen filter on spread_{index} to flag outliers based on rolling median absolute deviation. These flagged values are set to NaN to remove spurious spikes or data errors.
Interpretation
Spot-Futures Parity would suggest the forward rate extracted from futures = OIS rate, making the spread near zero.
A non-zero spread implies potential frictions, funding constraints, or margin requirements that might limit arbitrage.
Futures + Dividends yield an equity-implied forward rate over (\tau_1 \to \tau_2).
OIS gives an alternative “risk-free” benchmark.
Comparing them highlights possible arbitrage or funding market dislocations.
# 4. Comparing Forward Rates Across Indices
def explore_cross_index_comparison():
"""
Compare forward rates and spreads across different indices to identify patterns and relationships
"""
print("=== Exploring Cross-Index Forward Rate Analysis ===")
# Process data for all indices
results = {}
for idx in INDEX_CODES:
print(f"\nProcessing {idx}...")
fut_file = Path(PROCESSED_DIR) / f"{idx}_Calendar_spread.csv"
if not fut_file.exists():
print(f" Missing futures file for {idx}, skipping.")
continue
# Run the forward rate calculation
df_res = process_index_forward_rates(idx)
if df_res is not None and not df_res.empty:
results[idx] = df_res
if not results:
print("No valid results to compare. Ending exploration.")
return None
# Create a unified DataFrame with spreads from all indices
# First, find the union of all dates
all_dates = set()
for idx, df in results.items():
all_dates.update(df.index.tolist())
# Sort dates
date_index = pd.to_datetime(sorted(all_dates))
# Create a DataFrame with all spreads
spreads_df = pd.DataFrame(index=date_index)
for idx, df in results.items():
spread_col = f"spread_{idx}"
# Forward fill to handle missing dates
spreads_df[spread_col] = df[spread_col].reindex(date_index).ffill()
# Show the head of the combined spreads
print("\nCombined spreads data (first rows):")
display(spreads_df.head())
# Visualize combined spreads
plt.figure(figsize=(12, 8))
colors = {"SPX": "blue", "NDX": "green", "INDU": "red"}
for idx in results.keys():
spread_col = f"spread_{idx}"
plt.plot(
spreads_df.index,
spreads_df[spread_col],
color=colors.get(idx, "black"),
alpha=0.8,
label=f"{idx} Spread (bps)"
)
plt.axhline(0, color="k", linestyle="--", alpha=0.7)
plt.title("Implied Forward Spreads Across Indices (bps)")
plt.xlabel("Date")
plt.ylabel("Spread (bps)")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()
# Calculate correlations between spreads
if len(results) > 1:
corr_matrix = spreads_df.corr()
print("\nCorrelation matrix of spreads:")
display(corr_matrix)

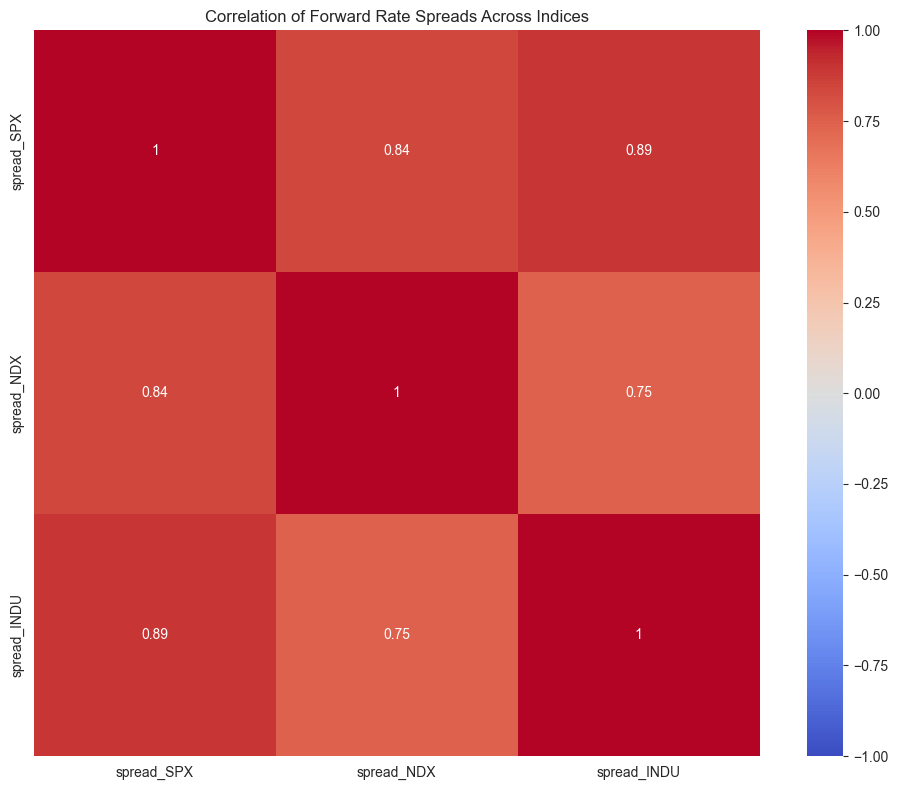

# Visualize correlations
plt.figure(figsize=(10, 8))
sns.heatmap(corr_matrix, annot=True, cmap='coolwarm', vmin=-1, vmax=1, square=True)
plt.title("Correlation of Forward Rate Spreads Across Indices")
plt.tight_layout()
plt.show()

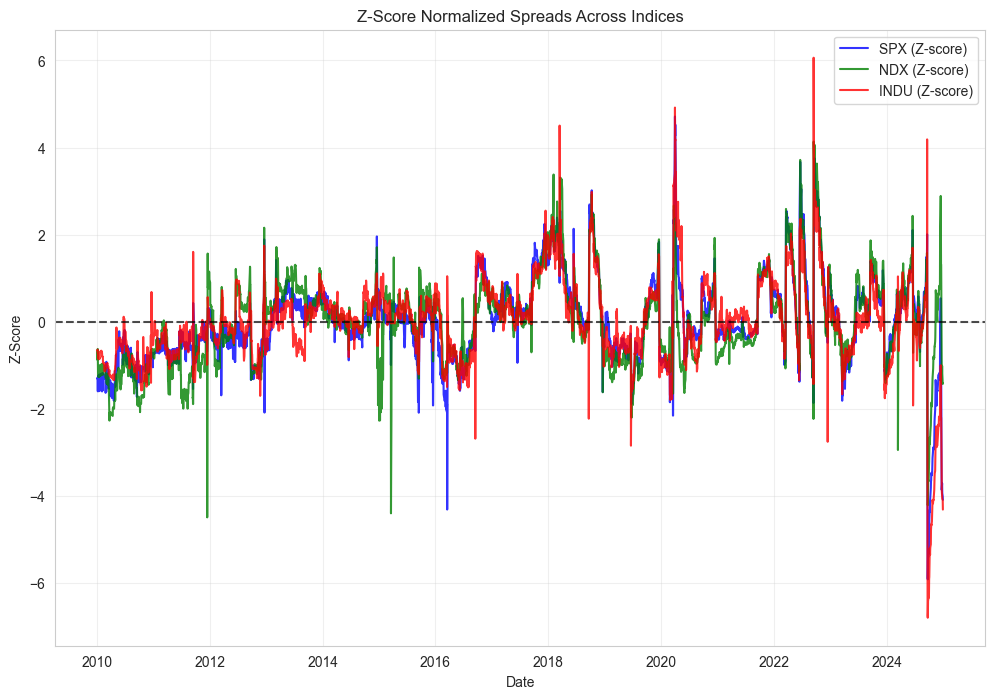

# Z-score normalized spreads for comparison
if not spreads_df.empty:
# Calculate z-scores for each spread
z_scores_df = pd.DataFrame(index=spreads_df.index)
for col in spreads_df.columns:
z_scores_df[col] = (spreads_df[col] - spreads_df[col].mean()) / spreads_df[col].std()
# Visualize normalized spreads
plt.figure(figsize=(12, 8))
for idx in results.keys():
spread_col = f"spread_{idx}"
plt.plot(
z_scores_df.index,
z_scores_df[spread_col],
color=colors.get(idx, "black"),
alpha=0.8,
label=f"{idx} (Z-score)"
)
plt.axhline(0, color="k", linestyle="--", alpha=0.7)
plt.title("Z-Score Normalized Spreads Across Indices")
plt.xlabel("Date")
plt.ylabel("Z-Score")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()
return spreads_df
cross_index_df = explore_cross_index_comparison()
=== Exploring Cross-Index Forward Rate Analysis ===
Processing SPX...
[SPX] Starting forward rate computation
[SPX] Loaded futures shape: (3781, 14)
[SPX] Dropped 0 rows lacking a valid Date in futures.
[SPX] as-of merged OIS: from 3781 -> 3781 rows (should be same).
[SPX] Building daily dividend table
Primary input file not found, switching to cached data
[SPX] daily dividends final shape: (3913, 2)
[SPX] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.058362
2 2010-01-05 0.001744
3 2010-01-06 0.497980
4 2010-01-07 0.061819
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.113508
9 2010-01-14 0.021957
[SPX] as-of merged CumDiv at current date: from 3781 -> 3781 rows.
[SPX] Sample merged rows with cumulative div:
Date Term1_Futures_Price Term1_Volume Term1_OpenInterest \
0 2010-01-04 1128.75 1282633.0 2440458.0
1 2010-01-05 1132.25 1368386.0 2402850.0
2 2010-01-06 1133.00 1252015.0 2396493.0
3 2010-01-07 1137.50 1553963.0 2406352.0
4 2010-01-08 1141.50 1508175.0 2758348.0
5 2010-01-11 1142.50 1444997.0 2427453.0
6 2010-01-12 1134.00 2089364.0 2439036.0
7 2010-01-13 1141.50 2110033.0 2475322.0
8 2010-01-14 1145.25 1346436.0 2473392.0
9 2010-01-15 1132.25 2031715.0 2454453.0
Term1_ContractSpec Term1_SettlementDate Term1_TTM Term2_Futures_Price \
0 MAR 10 2010-03-19 74.0 1124.00
1 MAR 10 2010-03-19 73.0 1127.50
2 MAR 10 2010-03-19 72.0 1128.00
3 MAR 10 2010-03-19 71.0 1132.50
4 MAR 10 2010-03-19 70.0 1136.75
5 MAR 10 2010-03-19 67.0 1137.50
6 MAR 10 2010-03-19 66.0 1129.00
7 MAR 10 2010-03-19 65.0 1136.75
8 MAR 10 2010-03-19 64.0 1140.25
9 MAR 10 2010-03-19 63.0 1127.50
Term2_Volume Term2_OpenInterest Term2_ContractSpec Term2_SettlementDate \
0 1641.0 3354.0 JUN 10 2010-06-18
1 686.0 3432.0 JUN 10 2010-06-18
2 1163.0 3713.0 JUN 10 2010-06-18
3 1135.0 4154.0 JUN 10 2010-06-18
4 1080.0 17466.0 JUN 10 2010-06-18
5 419.0 4638.0 JUN 10 2010-06-18
6 481.0 4765.0 JUN 10 2010-06-18
7 1174.0 5389.0 JUN 10 2010-06-18
8 333.0 5357.0 JUN 10 2010-06-18
9 1432.0 5936.0 JUN 10 2010-06-18
Term2_TTM Index OIS CumDiv_current
0 165.0 SPX 0.001620 0.058362
1 164.0 SPX 0.001550 0.060106
2 163.0 SPX 0.001460 0.558086
3 162.0 SPX 0.001450 0.619905
4 161.0 SPX 0.001430 0.619905
5 158.0 SPX 0.001430 0.619905
6 157.0 SPX 0.001415 0.619905
7 156.0 SPX 0.001470 0.733413
8 155.0 SPX 0.001430 0.755370
9 154.0 SPX 0.001380 0.799620
[SPX] as-of merged CumDiv for Term1: from 3781 -> 3781 rows.
[SPX] as-of merged CumDiv for Term2: from 3781 -> 3781 rows.
[SPX] Dropped 0 rows missing TTM or Futures_Price.
Barndorff-Nielsen filter: flagged 47 outliers in spread_SPX
[SPX] Setting 47 outliers to NaN for cal_SPX_rf & spread_SPX
[SPX] Final forward rates shape: (3781, 29)
[SPX] Sample final rows:
cal_SPX_rf ois_fwd_SPX spread_SPX
Date
2024-12-24 3.778583 4.287412 -50.882869
2024-12-26 3.796641 4.277498 -48.085749
2024-12-27 3.741256 4.277624 -53.636841
2024-12-30 3.717731 4.275913 -55.818186
2024-12-31 3.698950 4.274017 -57.506667
Processing NDX...
[NDX] Starting forward rate computation
[NDX] Loaded futures shape: (3781, 14)
[NDX] Dropped 0 rows lacking a valid Date in futures.
[NDX] as-of merged OIS: from 3781 -> 3781 rows (should be same).
[NDX] Building daily dividend table
Primary input file not found, switching to cached data
[NDX] daily dividends final shape: (3913, 2)
[NDX] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.148515
2 2010-01-05 0.000000
3 2010-01-06 0.000000
4 2010-01-07 0.000000
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.000000
9 2010-01-14 0.113752
[NDX] as-of merged CumDiv at current date: from 3781 -> 3781 rows.
[NDX] Sample merged rows with cumulative div:
Date Term1_Futures_Price Term1_Volume Term1_OpenInterest \
0 2010-01-04 1886.75 204140.0 314877.0
1 2010-01-05 1885.25 207245.0 309080.0
2 2010-01-06 1878.50 259627.0 310532.0
3 2010-01-07 1877.50 239907.0 317226.0
4 2010-01-08 1890.00 267314.0 379994.0
5 2010-01-11 1883.50 243454.0 314557.0
6 2010-01-12 1865.50 326600.0 306114.0
7 2010-01-13 1882.50 312998.0 331168.0
8 2010-01-14 1888.25 204465.0 324274.0
9 2010-01-15 1862.25 343007.0 320266.0
Term1_ContractSpec Term1_SettlementDate Term1_TTM Term2_Futures_Price \
0 MAR 10 2010-03-19 74.0 1884.75
1 MAR 10 2010-03-19 73.0 1883.00
2 MAR 10 2010-03-19 72.0 1876.50
3 MAR 10 2010-03-19 71.0 1875.00
4 MAR 10 2010-03-19 70.0 1887.25
5 MAR 10 2010-03-19 67.0 1880.75
6 MAR 10 2010-03-19 66.0 1862.75
7 MAR 10 2010-03-19 65.0 1879.75
8 MAR 10 2010-03-19 64.0 1885.50
9 MAR 10 2010-03-19 63.0 1859.75
Term2_Volume Term2_OpenInterest Term2_ContractSpec Term2_SettlementDate \
0 33.0 671.0 JUN 10 2010-06-18
1 74.0 651.0 JUN 10 2010-06-18
2 33.0 665.0 JUN 10 2010-06-18
3 47.0 672.0 JUN 10 2010-06-18
4 1001.0 6163.0 JUN 10 2010-06-18
5 288.0 898.0 JUN 10 2010-06-18
6 311.0 1077.0 JUN 10 2010-06-18
7 710.0 1699.0 JUN 10 2010-06-18
8 784.0 2401.0 JUN 10 2010-06-18
9 272.0 2533.0 JUN 10 2010-06-18
Term2_TTM Index OIS CumDiv_current
0 165.0 NDX 0.001620 0.148515
1 164.0 NDX 0.001550 0.148515
2 163.0 NDX 0.001460 0.148515
3 162.0 NDX 0.001450 0.148515
4 161.0 NDX 0.001430 0.148515
5 158.0 NDX 0.001430 0.148515
6 157.0 NDX 0.001415 0.148515
7 156.0 NDX 0.001470 0.148515
8 155.0 NDX 0.001430 0.262267
9 154.0 NDX 0.001380 0.262267
[NDX] as-of merged CumDiv for Term1: from 3781 -> 3781 rows.
[NDX] as-of merged CumDiv for Term2: from 3781 -> 3781 rows.
[NDX] Dropped 0 rows missing TTM or Futures_Price.
Barndorff-Nielsen filter: flagged 48 outliers in spread_NDX
[NDX] Setting 48 outliers to NaN for cal_NDX_rf & spread_NDX
[NDX] Final forward rates shape: (3781, 29)
[NDX] Sample final rows:
cal_NDX_rf ois_fwd_NDX spread_NDX
Date
2024-12-24 4.341428 4.287412 5.401572
2024-12-26 4.426357 4.277498 14.885916
2024-12-27 4.384662 4.277624 10.703781
2024-12-30 4.322400 4.275913 4.648708
2024-12-31 4.323851 4.274017 4.983391
Processing INDU...
[INDU] Starting forward rate computation
[INDU] Loaded futures shape: (3780, 14)
[INDU] Dropped 0 rows lacking a valid Date in futures.
[INDU] as-of merged OIS: from 3780 -> 3780 rows (should be same).
[INDU] Building daily dividend table
Primary input file not found, switching to cached data
[INDU] daily dividends final shape: (3913, 2)
[INDU] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.377875
2 2010-01-05 0.000000
3 2010-01-06 6.763957
4 2010-01-07 1.360349
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.000000
9 2010-01-14 0.000000
[INDU] as-of merged CumDiv at current date: from 3780 -> 3780 rows.
[INDU] Sample merged rows with cumulative div:
Date Term1_Futures_Price Term1_Volume Term1_OpenInterest \
0 2010-01-04 10519.0 93770.0 69420.0
1 2010-01-05 10515.0 93287.0 65749.0
2 2010-01-06 10516.0 97172.0 63888.0
3 2010-01-07 10545.0 112280.0 67401.0
4 2010-01-08 10566.0 79925.0 61714.0
5 2010-01-11 10604.0 93891.0 63318.0
6 2010-01-12 10588.0 126885.0 62710.0
7 2010-01-13 10628.0 113576.0 63479.0
8 2010-01-14 10663.0 80520.0 64500.0
9 2010-01-15 10563.0 140591.0 66826.0
Term1_ContractSpec Term1_SettlementDate Term1_TTM Term2_Futures_Price \
0 MAR 10 2010-03-19 74.0 10459.0
1 MAR 10 2010-03-19 73.0 10455.0
2 MAR 10 2010-03-19 72.0 10455.0
3 MAR 10 2010-03-19 71.0 10484.0
4 MAR 10 2010-03-19 70.0 10505.0
5 MAR 10 2010-03-19 67.0 10542.0
6 MAR 10 2010-03-19 66.0 10527.0
7 MAR 10 2010-03-19 65.0 10566.0
8 MAR 10 2010-03-19 64.0 10601.0
9 MAR 10 2010-03-19 63.0 10501.0
Term2_Volume Term2_OpenInterest Term2_ContractSpec Term2_SettlementDate \
0 100.0 175.0 JUN 10 2010-06-18
1 26.0 173.0 JUN 10 2010-06-18
2 157.0 193.0 JUN 10 2010-06-18
3 34.0 180.0 JUN 10 2010-06-18
4 146.0 531.0 JUN 10 2010-06-18
5 45.0 230.0 JUN 10 2010-06-18
6 55.0 234.0 JUN 10 2010-06-18
7 21.0 208.0 JUN 10 2010-06-18
8 11.0 206.0 JUN 10 2010-06-18
9 80.0 221.0 JUN 10 2010-06-18
Term2_TTM Index OIS CumDiv_current
0 165.0 INDU 0.001620 0.377875
1 164.0 INDU 0.001550 0.377875
2 163.0 INDU 0.001460 7.141832
3 162.0 INDU 0.001450 8.502181
4 161.0 INDU 0.001430 8.502181
5 158.0 INDU 0.001430 8.502181
6 157.0 INDU 0.001415 8.502181
7 156.0 INDU 0.001470 8.502181
8 155.0 INDU 0.001430 8.502181
9 154.0 INDU 0.001380 11.676328
[INDU] as-of merged CumDiv for Term1: from 3780 -> 3780 rows.
[INDU] as-of merged CumDiv for Term2: from 3780 -> 3780 rows.
[INDU] Dropped 0 rows missing TTM or Futures_Price.
Barndorff-Nielsen filter: flagged 43 outliers in spread_INDU
[INDU] Setting 43 outliers to NaN for cal_INDU_rf & spread_INDU
[INDU] Final forward rates shape: (3780, 29)
[INDU] Sample final rows:
cal_INDU_rf ois_fwd_INDU spread_INDU
Date
2024-12-24 3.525951 4.287412 -76.146147
2024-12-26 3.485142 4.277498 -79.235563
2024-12-27 3.459165 4.277624 -81.845864
2024-12-30 3.446690 4.275913 -82.922307
2024-12-31 3.377212 4.274017 -89.680496
Combined spreads data (first rows):
| spread_SPX | spread_NDX | spread_INDU | |
|---|---|---|---|
| 2010-01-04 | 11.572066 | 22.661276 | 25.302054 |
| 2010-01-05 | 12.181110 | 18.151200 | 26.010192 |
| 2010-01-06 | 4.369103 | 24.426083 | 23.178006 |
| 2010-01-07 | 4.393865 | 14.026219 | 23.177080 |
| 2010-01-08 | 13.157910 | 8.811714 | 23.300181 |
Correlation matrix of spreads:
| spread_SPX | spread_NDX | spread_INDU | |
|---|---|---|---|
| spread_SPX | 1.000000 | 0.842434 | 0.894422 |
| spread_NDX | 0.842434 | 1.000000 | 0.745491 |
| spread_INDU | 0.894422 | 0.745491 | 1.000000 |
# 5. Exploring the Economic Significance of Forward Rate Spreads
def explore_economic_significance():
"""
Analyze the economic significance of forward rate spreads
"""
print("=== Exploring Economic Significance of Forward Rate Spreads ===")
# Process data for SPX (as an example)
index_code = "SPX"
fut_file = Path(PROCESSED_DIR) / f"{index_code}_Calendar_spread.csv"
if not fut_file.exists():
print(f"Missing futures file for {index_code}. Cannot proceed with exploration.")
return None
# Run the forward rate calculation
df_res = process_index_forward_rates(index_code)
if df_res is None or df_res.empty:
print("No valid results. Ending exploration.")
return None
# Set the spread column
spread_col = f"spread_{index_code}"
# Calculate the percentage of time the spread is positive vs negative
positive_spread = (df_res[spread_col] > 0).mean() * 100
negative_spread = (df_res[spread_col] < 0).mean() * 100
print(f"\nSpread direction summary:")
print(f" Positive spread: {positive_spread:.1f}% of the time")
print(f" Negative spread: {negative_spread:.1f}% of the time")
print(f" Zero or missing: {100 - positive_spread - negative_spread:.1f}% of the time")

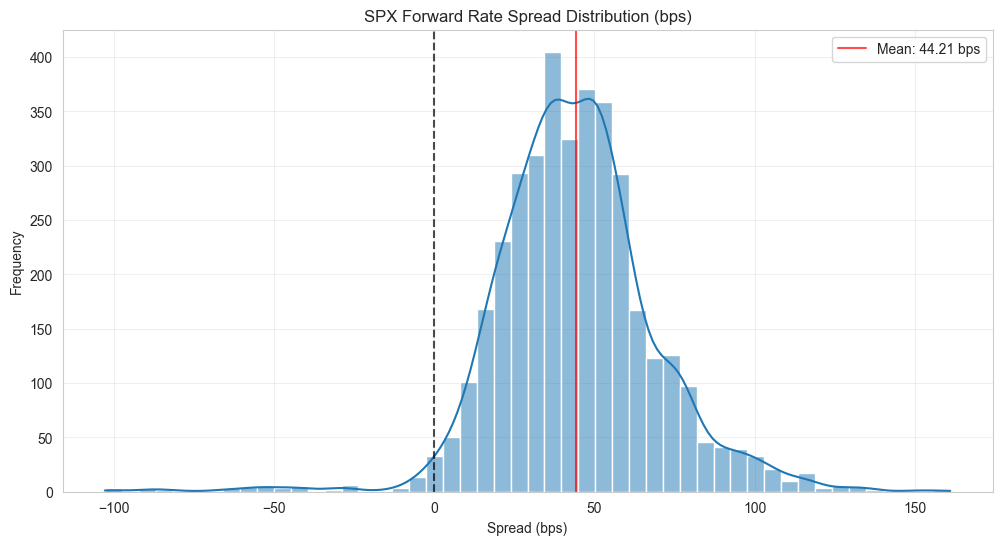

# Visualize the distribution of spreads
plt.figure(figsize=(12, 6))
sns.histplot(df_res[spread_col].dropna(), bins=50, kde=True)
plt.axvline(0, color='k', linestyle='--', alpha=0.7)
plt.axvline(df_res[spread_col].mean(), color='r', linestyle='-', alpha=0.7,
label=f'Mean: {df_res[spread_col].mean():.2f} bps')
plt.title(f"{index_code} Forward Rate Spread Distribution (bps)")
plt.xlabel("Spread (bps)")
plt.ylabel("Frequency")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

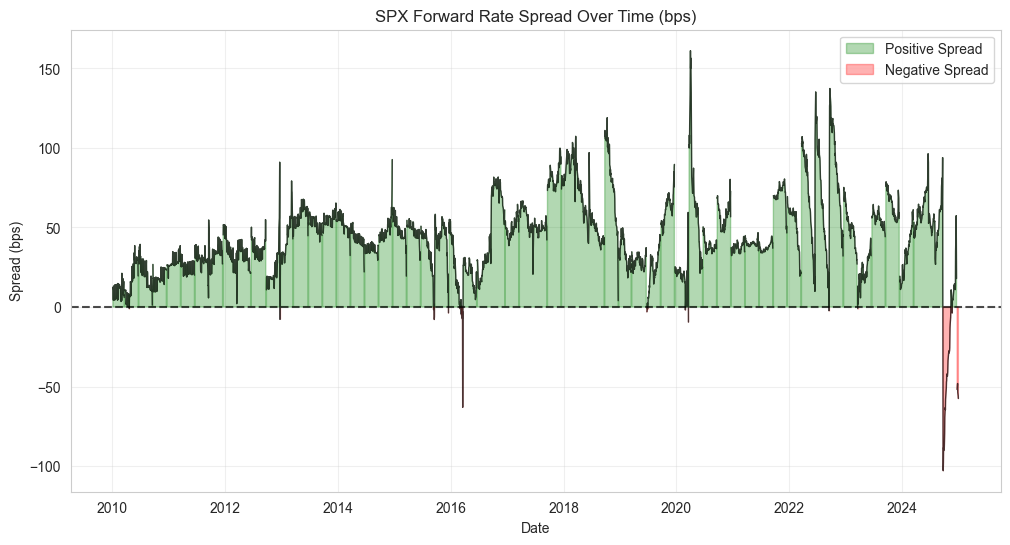

# Create a time plot with positive/negative highlighting
plt.figure(figsize=(12, 6))
# Plot the spread
plt.plot(df_res.index, df_res[spread_col], 'k-', alpha=0.7, linewidth=1)
# Highlight positive and negative regions
positive_mask = df_res[spread_col] > 0
negative_mask = df_res[spread_col] < 0
plt.fill_between(df_res.index, 0, df_res[spread_col], where=positive_mask,
color='green', alpha=0.3, label='Positive Spread')
plt.fill_between(df_res.index, 0, df_res[spread_col], where=negative_mask,
color='red', alpha=0.3, label='Negative Spread')
plt.axhline(0, color='k', linestyle='--', alpha=0.7)
plt.title(f"{index_code} Forward Rate Spread Over Time (bps)")
plt.xlabel("Date")
plt.ylabel("Spread (bps)")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()
# Calculate persistence - how long spreads stay positive or negative
df_res['spread_sign'] = np.sign(df_res[spread_col])
df_res['regime_change'] = df_res['spread_sign'].diff().ne(0).astype(int)
df_res['regime_id'] = df_res['regime_change'].cumsum()
# Get regime lengths
regime_lengths = df_res.groupby('regime_id').size()
# Separate positive and negative regimes
regime_signs = df_res.groupby('regime_id')['spread_sign'].first()
positive_lengths = regime_lengths[regime_signs > 0]
negative_lengths = regime_lengths[regime_signs < 0]
print("\nRegime persistence:")
if not positive_lengths.empty:
print(f" Positive spread regimes: {len(positive_lengths)}")
print(f" Average positive regime duration: {positive_lengths.mean():.1f} days")
print(f" Longest positive regime: {positive_lengths.max()} days")
if not negative_lengths.empty:
print(f" Negative spread regimes: {len(negative_lengths)}")
print(f" Average negative regime duration: {negative_lengths.mean():.1f} days")
print(f" Longest negative regime: {negative_lengths.max()} days")

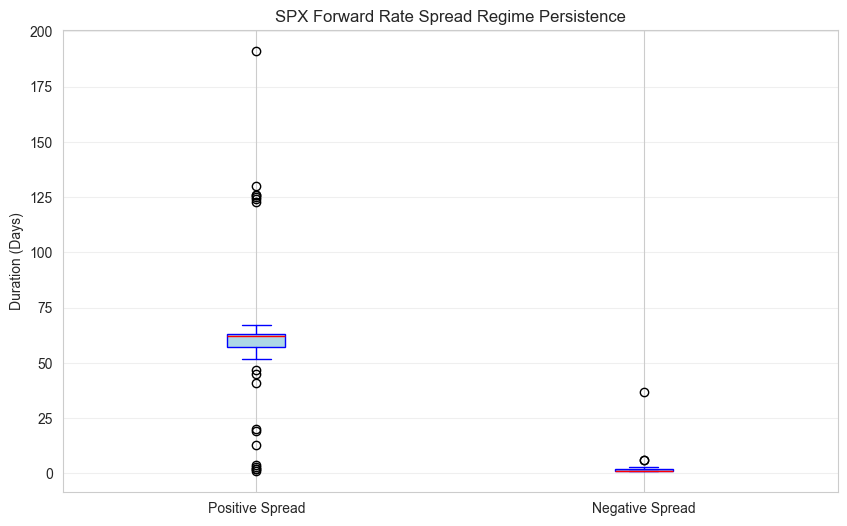

# Visualize regime persistence with a boxplot
plt.figure(figsize=(10, 6))
data = [positive_lengths, negative_lengths]
labels = ['Positive Spread', 'Negative Spread']
plt.boxplot(data, labels=labels, patch_artist=True,
boxprops=dict(facecolor='lightblue', color='blue'),
whiskerprops=dict(color='blue'),
capprops=dict(color='blue'),
medianprops=dict(color='red'))
plt.title(f"{index_code} Forward Rate Spread Regime Persistence")
plt.ylabel("Duration (Days)")
plt.grid(True, alpha=0.3, axis='y')
plt.show()
return df_res
# Run the exploration
economic_df = explore_economic_significance()
=== Exploring Economic Significance of Forward Rate Spreads ===
[SPX] Starting forward rate computation
[SPX] Loaded futures shape: (3781, 14)
[SPX] Dropped 0 rows lacking a valid Date in futures.
[SPX] as-of merged OIS: from 3781 -> 3781 rows (should be same).
[SPX] Building daily dividend table
Primary input file not found, switching to cached data
[SPX] daily dividends final shape: (3913, 2)
[SPX] Sample daily dividends:
Date Daily_Div
0 2010-01-01 0.000000
1 2010-01-04 0.058362
2 2010-01-05 0.001744
3 2010-01-06 0.497980
4 2010-01-07 0.061819
5 2010-01-08 0.000000
6 2010-01-11 0.000000
7 2010-01-12 0.000000
8 2010-01-13 0.113508
9 2010-01-14 0.021957
[SPX] as-of merged CumDiv at current date: from 3781 -> 3781 rows.
[SPX] Sample merged rows with cumulative div:
Date Term1_Futures_Price Term1_Volume Term1_OpenInterest \
0 2010-01-04 1128.75 1282633.0 2440458.0
1 2010-01-05 1132.25 1368386.0 2402850.0
2 2010-01-06 1133.00 1252015.0 2396493.0
3 2010-01-07 1137.50 1553963.0 2406352.0
4 2010-01-08 1141.50 1508175.0 2758348.0
5 2010-01-11 1142.50 1444997.0 2427453.0
6 2010-01-12 1134.00 2089364.0 2439036.0
7 2010-01-13 1141.50 2110033.0 2475322.0
8 2010-01-14 1145.25 1346436.0 2473392.0
9 2010-01-15 1132.25 2031715.0 2454453.0
Term1_ContractSpec Term1_SettlementDate Term1_TTM Term2_Futures_Price \
0 MAR 10 2010-03-19 74.0 1124.00
1 MAR 10 2010-03-19 73.0 1127.50
2 MAR 10 2010-03-19 72.0 1128.00
3 MAR 10 2010-03-19 71.0 1132.50
4 MAR 10 2010-03-19 70.0 1136.75
5 MAR 10 2010-03-19 67.0 1137.50
6 MAR 10 2010-03-19 66.0 1129.00
7 MAR 10 2010-03-19 65.0 1136.75
8 MAR 10 2010-03-19 64.0 1140.25
9 MAR 10 2010-03-19 63.0 1127.50
Term2_Volume Term2_OpenInterest Term2_ContractSpec Term2_SettlementDate \
0 1641.0 3354.0 JUN 10 2010-06-18
1 686.0 3432.0 JUN 10 2010-06-18
2 1163.0 3713.0 JUN 10 2010-06-18
3 1135.0 4154.0 JUN 10 2010-06-18
4 1080.0 17466.0 JUN 10 2010-06-18
5 419.0 4638.0 JUN 10 2010-06-18
6 481.0 4765.0 JUN 10 2010-06-18
7 1174.0 5389.0 JUN 10 2010-06-18
8 333.0 5357.0 JUN 10 2010-06-18
9 1432.0 5936.0 JUN 10 2010-06-18
Term2_TTM Index OIS CumDiv_current
0 165.0 SPX 0.001620 0.058362
1 164.0 SPX 0.001550 0.060106
2 163.0 SPX 0.001460 0.558086
3 162.0 SPX 0.001450 0.619905
4 161.0 SPX 0.001430 0.619905
5 158.0 SPX 0.001430 0.619905
6 157.0 SPX 0.001415 0.619905
7 156.0 SPX 0.001470 0.733413
8 155.0 SPX 0.001430 0.755370
9 154.0 SPX 0.001380 0.799620
[SPX] as-of merged CumDiv for Term1: from 3781 -> 3781 rows.
[SPX] as-of merged CumDiv for Term2: from 3781 -> 3781 rows.
[SPX] Dropped 0 rows missing TTM or Futures_Price.
Barndorff-Nielsen filter: flagged 47 outliers in spread_SPX
[SPX] Setting 47 outliers to NaN for cal_SPX_rf & spread_SPX
[SPX] Final forward rates shape: (3781, 29)
[SPX] Sample final rows:
cal_SPX_rf ois_fwd_SPX spread_SPX
Date
2024-12-24 3.778583 4.287412 -50.882869
2024-12-26 3.796641 4.277498 -48.085749
2024-12-27 3.741256 4.277624 -53.636841
2024-12-30 3.717731 4.275913 -55.818186
2024-12-31 3.698950 4.274017 -57.506667
Spread direction summary:
Positive spread: 96.9% of the time
Negative spread: 1.8% of the time
Zero or missing: 1.2% of the time
Regime persistence:
Positive spread regimes: 59
Average positive regime duration: 62.1 days
Longest positive regime: 191 days
Negative spread regimes: 17
Average negative regime duration: 4.1 days
Longest negative regime: 37 days
C:\Users\Andik\AppData\Local\Temp\ipykernel_8\1733434661.py:106: MatplotlibDeprecationWarning: The 'labels' parameter of boxplot() has been renamed 'tick_labels' since Matplotlib 3.9; support for the old name will be dropped in 3.11.
plt.boxplot(data, labels=labels, patch_artist=True,
Theoretical Understanding of Implied Forward Rate Calculation#
1. Understanding Daily Dividends#
The daily dividend processing is a crucial first step in forward rate calculation. It involves:
Data Source: Extracting dividend data from Bloomberg historical data
Processing Steps: Converting dates, handling missing values, and calculating cumulative dividends
Key Insight: Dividends accumulate over time and impact future values of the index
Seasonality: There are often patterns in dividend distributions throughout the year
Importance: Accurate dividend projections are essential for proper forward rate calculation
Understanding how dividends accumulate between the current date and settlement dates is critical. The spread between nearby and farther-term futures contracts must account for these dividend payments.
2. Barndorff-Nielsen Outlier Filter#
The Barndorff-Nielsen filter identifies and removes statistical outliers in time series data:
Core Components:
Rolling median calculation (robust central tendency measure)
Absolute deviation from the median
Mean absolute deviation (MAD) as a scale measure
Standardized deviation (absolute deviation / MAD)
Threshold comparison to identify outliers
Key Advantages:
Insensitive to extreme values (unlike mean/standard deviation)
Adapts to local characteristics of the time series
Preserves legitimate signal changes while removing anomalies
Application to Forward Rates:
Removes data errors or market dislocations that would distort analysis
Helps identify true arbitrage opportunities vs. data anomalies
3. Forward Rate Calculation Process#
The forward rate calculation is based on the cost-of-carry model with dividends:
Step 1: Data Merging
Calendar spread data (near/next futures prices and settlement dates)
OIS rates (risk-free benchmark)
Daily dividends (accumulation between current and settlement dates)
Step 2: Dividend Sum Calculation
Calculate expected dividends between observation date and both settlement dates
Apply half-interval compounding using the OIS rate to account for time value
Step 3: Implied Forward Rate Calculation
Calculate raw implied forward rate from futures prices and compounded dividends
Annualize the rate by dividing by the time difference and multiplying by 360
Step 4: OIS-implied Forward Rate
Calculate the theoretical forward rate based solely on OIS rates
This represents the risk-free expectation of future rates
Step 5: Spread Calculation
The difference between implied and OIS forward rates represents potential arbitrage
Expressed in basis points for easier interpretation
The theoretical foundation is that under no-arbitrage conditions, the spread should be zero. Deviations represent market inefficiencies or risk premia.
4. Cross-Index Analysis#
Comparing forward rate spreads across different indices offers deeper insights:
Correlation Analysis:
High correlation suggests common market drivers
Low correlation indicates index-specific factors
Z-Score Normalization:
Allows comparison of spreads with different volatility characteristics
Highlights periods of abnormal behavior across indices
Rolling Correlation:
Shows how relationships between indices evolve over time
Can identify regime changes in market integration
Differences in spread behavior across indices may reveal:
Different dividend expectations
Index-specific liquidity constraints
Varying market microstructure
5. Theoretical Framework#
The implied forward rate calculation is grounded in financial theory:
Cost-of-Carry Model:
F(t,T) = S(t) × e^((r-d)(T-t))
Where F is futures price, S is spot price, r is risk-free rate, d is dividend yield
No-Arbitrage Principle:
In perfectly efficient markets with no frictions, the implied forward rate should equal the OIS forward rate
Deviations create arbitrage opportunities
Yield Curve Theory:
Forward rates contain information about market expectations of future interest rates
Term structure shapes influence the relationship between near and far-term rates
Funding Liquidity:
Constraints in funding can create persistent deviations from theoretical values
The spread can be viewed as a measure of funding conditions
Dividend Uncertainty:
Differences between expected and actual dividends affect the spread
Market pricing may include a risk premium for dividend uncertainty
